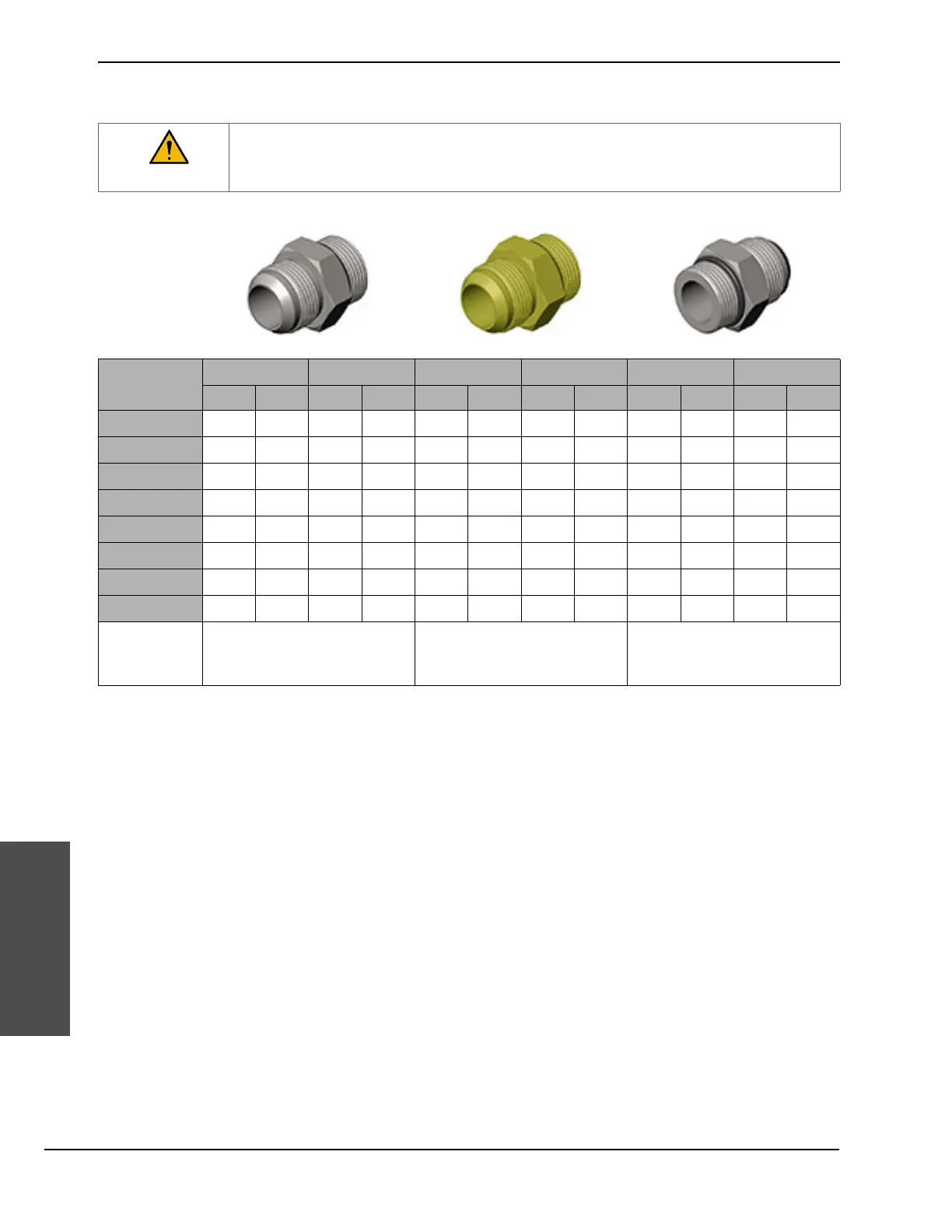

184 HyPrecision 50S/60S/75S Operator Manual 808690
8 – Pump specifications
Pump specifications
CAUTION
Sizes -08 and smaller are not tolerant of overtorquing. Overtorquing reduces the clamping force,
which causes an insufficient seal.
Steel JIC 37° Brass JIC 37° SAE O-ring boss
1/16-inch
dash size
Minimum Maximum Minimum Maximum Minimum Maximum
N∙m lbf∙ft N∙m lbf∙ft N∙m lbf∙ft N∙m lbf∙ft N∙m lbf∙ft N∙m lbf∙ft
-04 14 10 15 11 7 5 8 6 14 10 16 12
-06 23 17 26 19 16 12 20 15 24 18 27 20
-08 46 34 52 38 27 20 33 24 43 32 47 35
-10 68 50 76 56 46 34 54 40 62 46 68 50
-12 9570106787253816088659570
-16 127 94 141 104 100 74 111 82 125 92 136 100
-20 168 124 187 138 102 75 113 83 169 125 190 140
-24 212 156 235 173 107 79 118 87 203 150 224 165

Lubricate the threads of JIC
steel fittings with hydraulic
fluid.
Do not lubricate brass JIC
fittings.
Do not use thread sealant on
SAE hydraulic fittings.
