Product description
Utility panel

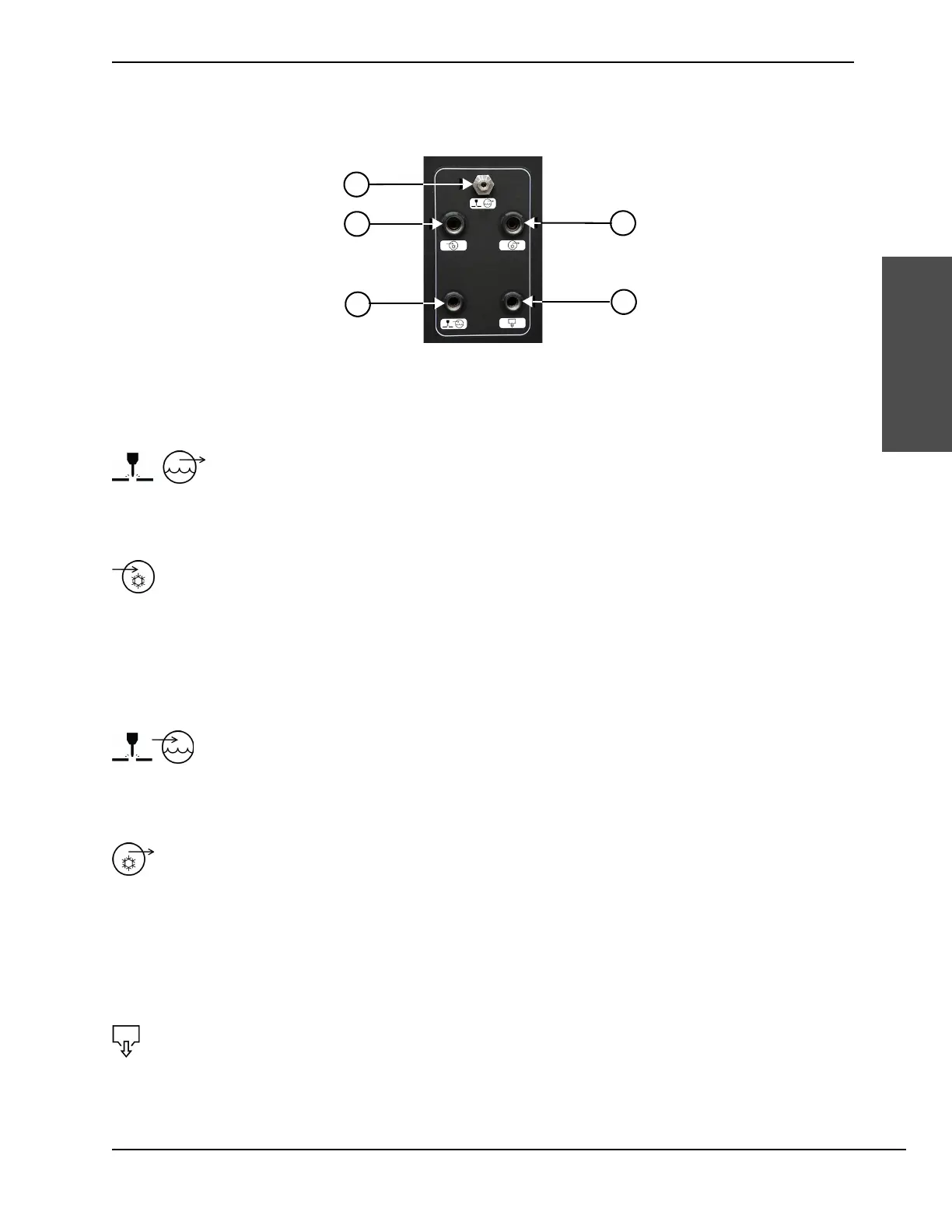

These fittings are found on the utility panel on the rear of the pump.
CUTTING WATER OUT
This water has been pressurized by the intensifier for piercing or cutting. Water goes from the pump to the
waterjet cutting table.
COOLING IN
Water-cooled system
This is low-pressure supply water or water from a chiller that goes to a heat exchanger.
Air-cooled system
This is hydraulic fluid that is returning from an external air cooler.
CUTTING WATER IN
This low-pressure water goes into the pump from a water softener, a reverse osmosis system, a well, or a public
utility.
COOLING OUT
Water-cooled system
This is low-pressure water from a heat exchanger that goes to a drain or returns to a chiller.
Air-cooled system
This is hydraulic fluid that is sent to an external air cooler.
WASTEWATER OUT
This line carries water from the bleed-down valve and the low-pressure system to a drain.
1 CUTTING WATER OUT
2 COOLING IN
3 CUTTING WATER IN
4 COOLING OUT
5 WASTEWATER OUT
