46 HyPrecision 50S/60S/75S Operator Manual 808690
4 – Operation
Operation
Operation panel
The operation panel turns the control circuit inside the pump on and off and controls local and remote pump
operation.
The CONTROLS ON button turns on the control circuit inside the pump.
When the LOCAL/REMOTE key switch is set to LOCAL, the operator interface is used to run the pump. When
the key switch is set to REMOTE:
The remote source, such as a computer numerical control (CNC) operator console, controls the pump.
The REMOTE ACTIVE indicator light is on.
Most of the functions on the operator interface are disabled.
The pump off symbol is functional.
The EMERGENCY STOP button turns off the control circuit inside the pump. When the EMERGENCY STOP
button is pushed:
The control circuit turns off, which turns off the pump, the primary motor, and the intensifier.
The bleed-down valve opens and discharges water from the system.
The CONTROLS ON button indicator light turns off.
Primary breaker disconnect lever
The primary breaker disconnect lever disconnects electricity to the pump motor and controls.

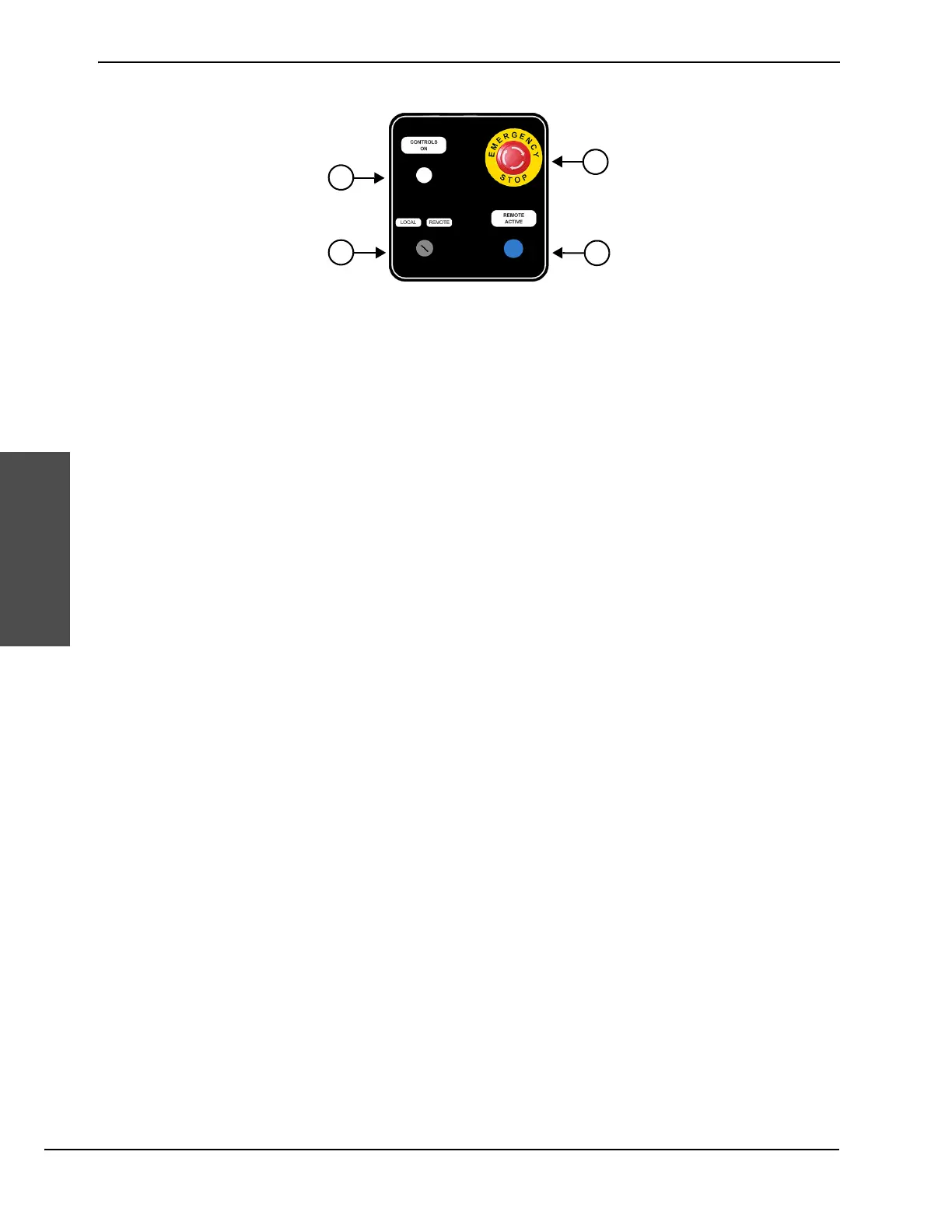

1 CONTROLS ON button
2 LOCAL/REMOTE key switch
3 EMERGENCY STOP button
4 REMOTE ACTIVE indicator light
