Maintenance and RepaiR
8-10 Powermax105 Operator Manual

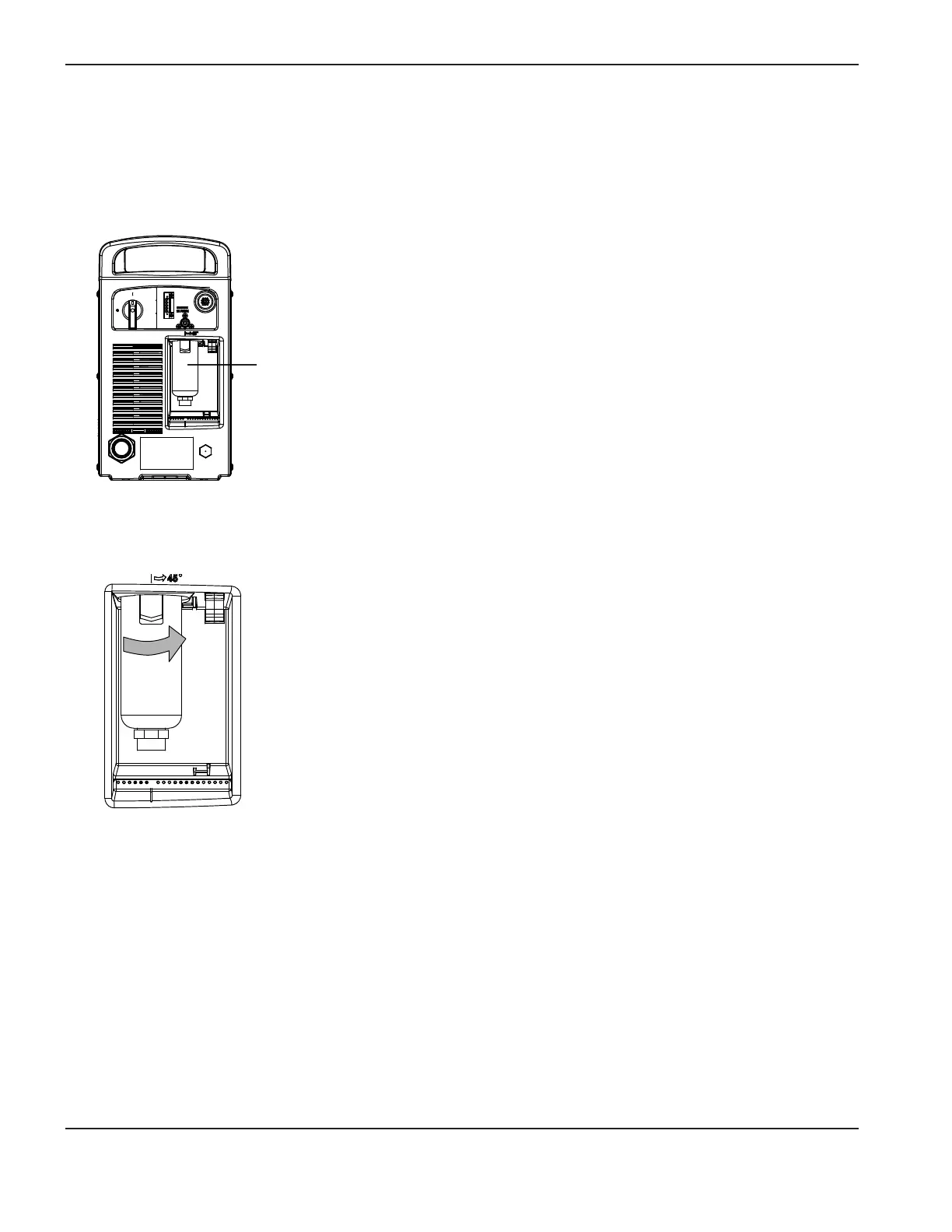

Replace the air filter element and air filter bowl
Remove the air filter bowl
1. Turn OFF the power, disconnect the power cord, and make sure the gas supply is disconnected. Position the rear
of the power supply so the removable air filter bowl is easily accessible.
Air filter bowl
2. If the consumables case is positioned next to the air filter bowl, remove it first.
3. Grasp the filter bowl with your right hand. Push down the thumb latch and rotate the filter bowl approximately
45degrees to the right.
4. Pull the filter bowl straight down to remove.
