Hypertherm Powermax105 User Manual

Hand TorcH SeTup
4-4 Powermax105 Operator Manual
Choose the hand torch consumables
Hypertherm includes a box of consumables with your system. Both styles of hand torches shown on the previous page
use the same consumables.
Hand torches use shielded consumables. Therefore, you can drag the torch tip along the metal.
Consumables for hand cutting are shown in the next section. Notice that the retaining cap and electrode are the same
for cutting, gouging, and FineCut
®
applications. Only the shield, nozzle, and swirl ring are different.
For the best cut quality on thin materials (approximately 4mm/10GA or less), you may prefer to use FineCut
consumables, or use a 45A nozzle and reduce the amperage to that setting.
To cut or gouge in hard to access or confined spaces, use HyAccess
TM
consumables. These 65A consumables
extend the reach of the general-purpose (standard) consumables by approximately 7.5cm (3inches). Operating at
240V, you can expect to achieve approximately the same cut thicknesses and cut quality as with the general-purpose
consumables.
Two HyAccess nozzles are available:
• One standard nozzle designed for a broad range of cutting applications
• One gouging nozzle designed specifically for gouging
When the tip of either nozzle wears out, replace the entire nozzle.

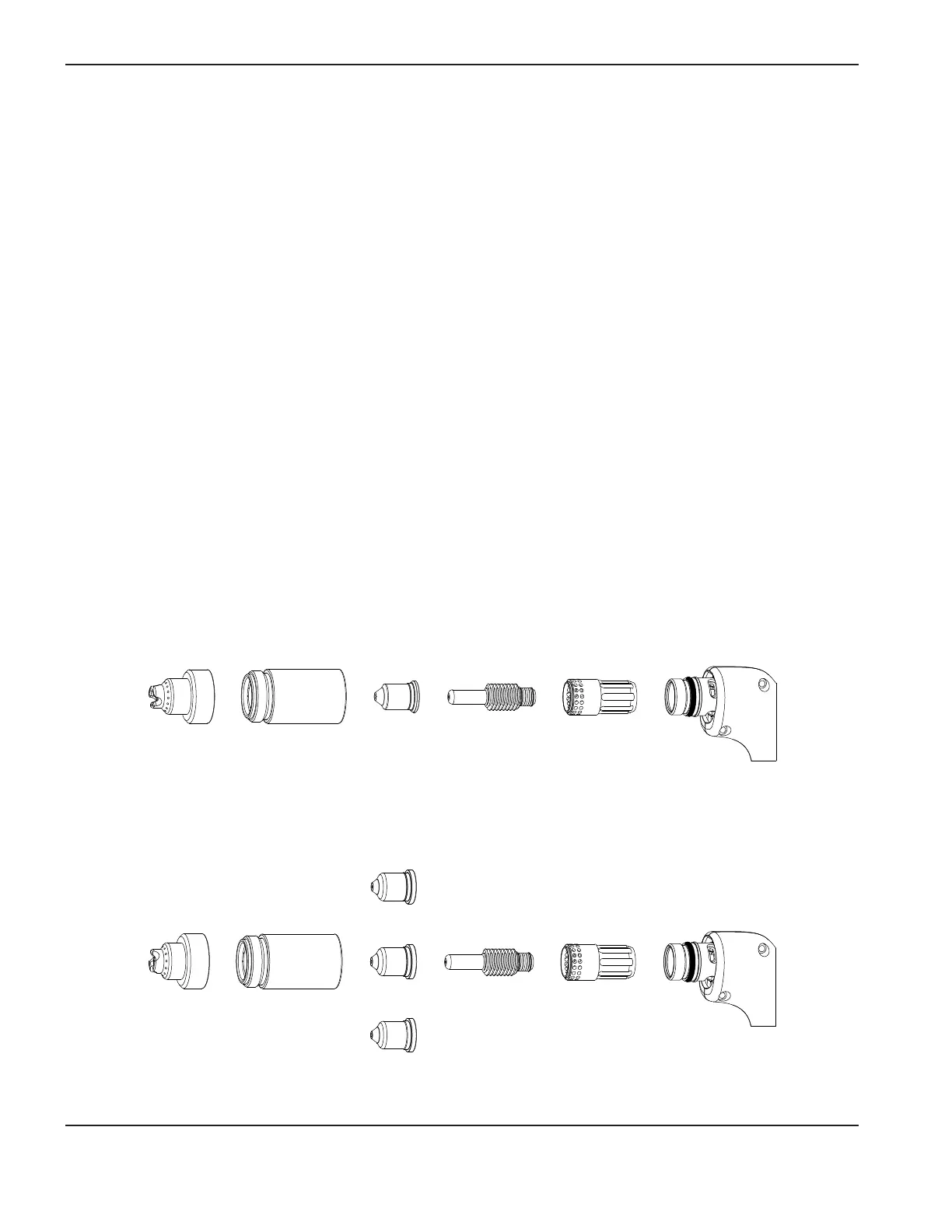

Hand torch consumables
Drag-cutting 105 A consumables
Drag-cutting 45 A, 65 A, 85 A consumables
1
0
5
A
220992
Shield
220854
Retaining cap
220990
Nozzle
220994
Swirl ring
220842
Electrode
6
5
A
4
5
A
8
5
A
220818
Shield
220854
Retaining cap
220941
Nozzle
220819
Nozzle
220816
Nozzle
220994
Swirl ring
220842
Electrode
