MAINTENANCE
3-32 powermax1250 Service Manual
4

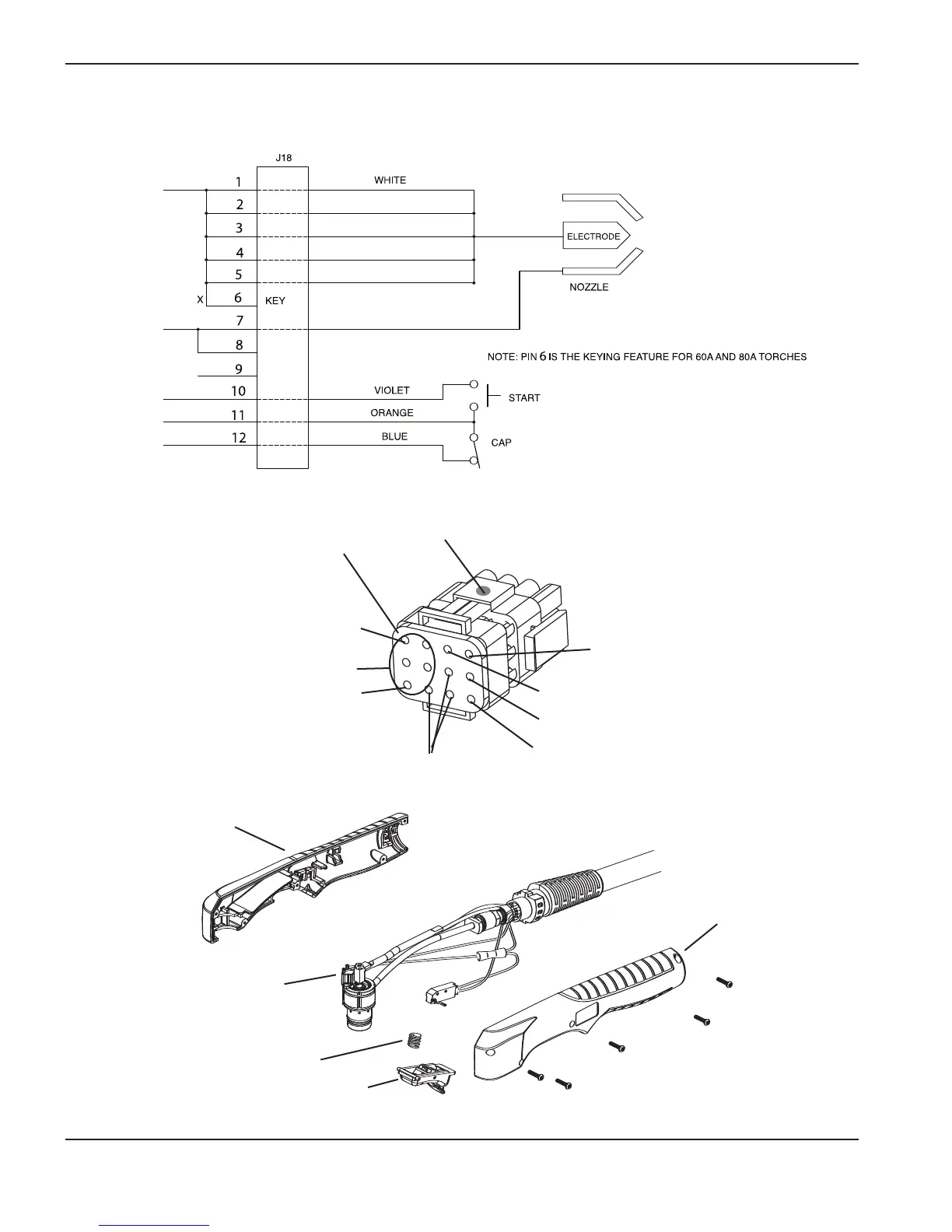

T80 hand torch: connector pinout diagrams and assembly
RED
Blue rubber seal
White wires (plunger)
Red dot
Pin 1
Pin 10 violet wire (trigger)
Orange wire (cap sense/trigger)
Pin 12 blue wire (cap sense)
Pin 3
Not used
Red wire (nozzle)
Right
handle
Left
handle
Torch
body
Spring
Trigger
Screws (5)
