Hypertherm powermax1650 - Torch Installation Procedure

SETUP
3-8 powermax1650 Operator Manual
2

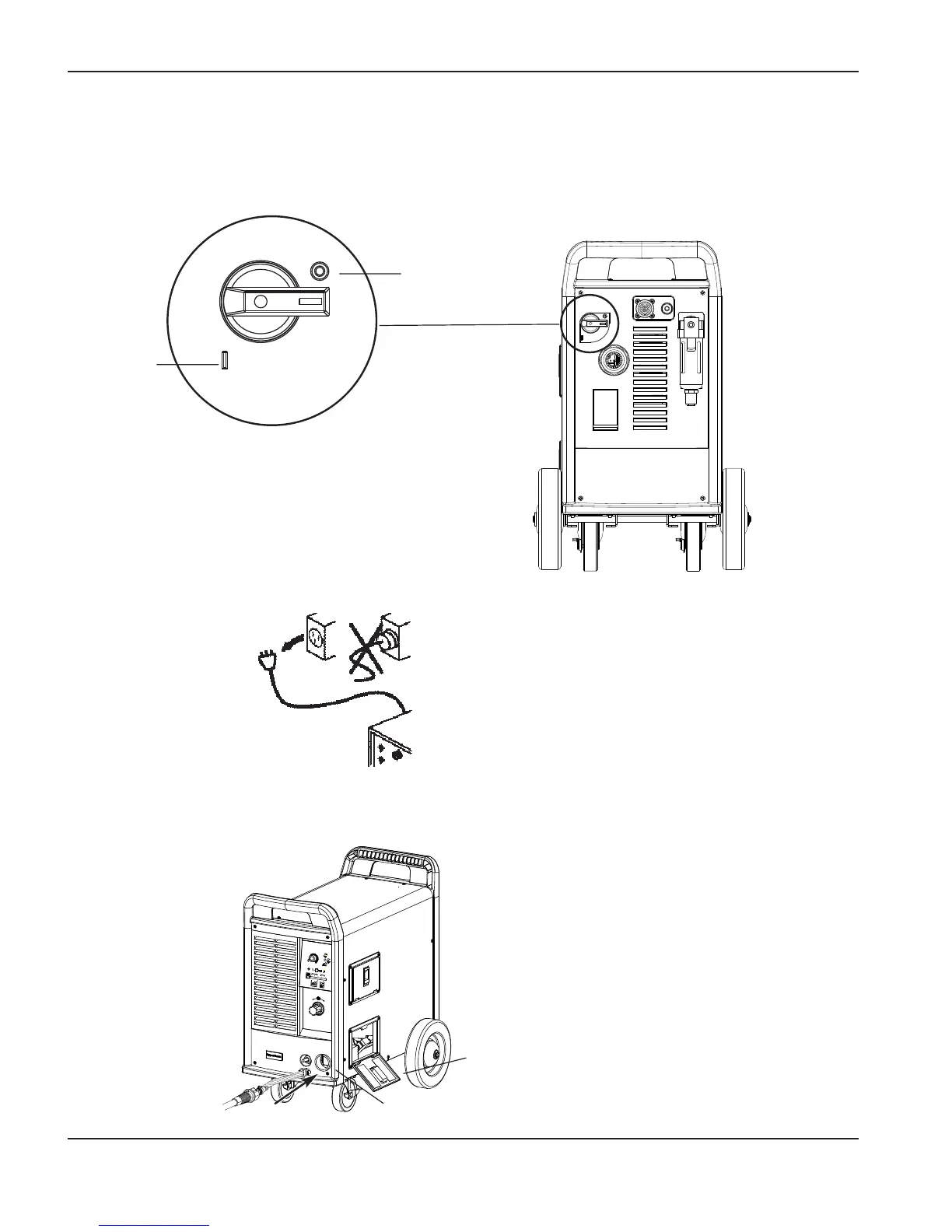

Torch installation
1. Turn OFF the power.
2. Remove the power cord from the power receptacle.
3. Open the Easy Torch Removal (ETR) door and route the lead through the end cap.
