OPERATION
0
powermax1650 Operator Manual 4-13
WARNING
SPARKS AND HOT METAL CAN INJURE
EYES AND BURN SKIN
When firing the torch at an angle, sparks and hot metal will
spray out from the nozzle. Point the torch away from yourself
and others.

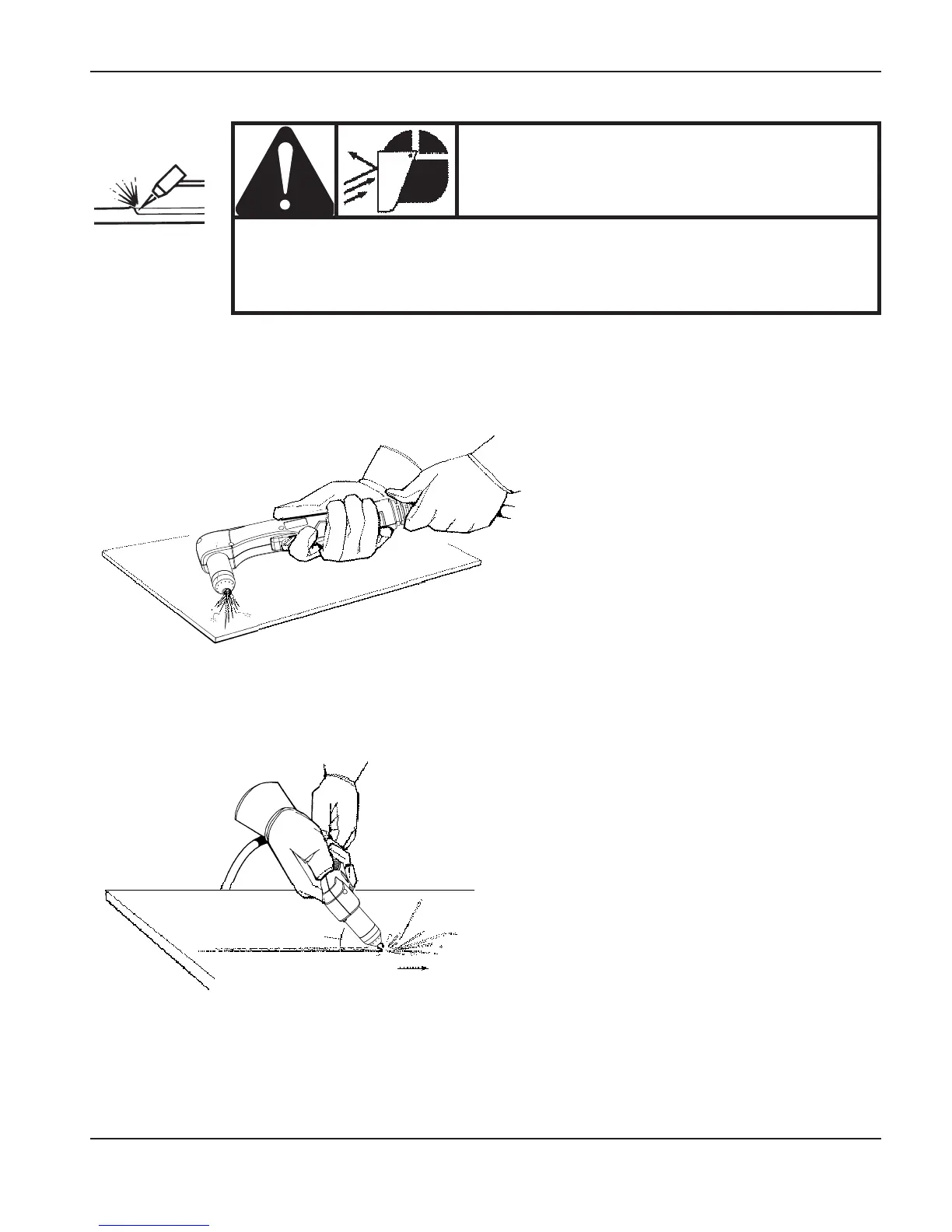

Gouging
Hold the torch so that the nozzle is within 1/16 in (1.5 mm) from the workpiece before firing the
torch.
Hold the torch at a 45° angle to the
workpiece. Pull the trigger to obtain a
pilot arc. Transfer the arc to the work
piece.
Maintain an approximate 45° angle to
the workpiece.
Feed into the gouge.
Di rec tion of travel
45°
Note: A heat shield is available for added hand and torch protection (part number 220049).
