3-22
MAINTENANCE
powermax600 Service Manual

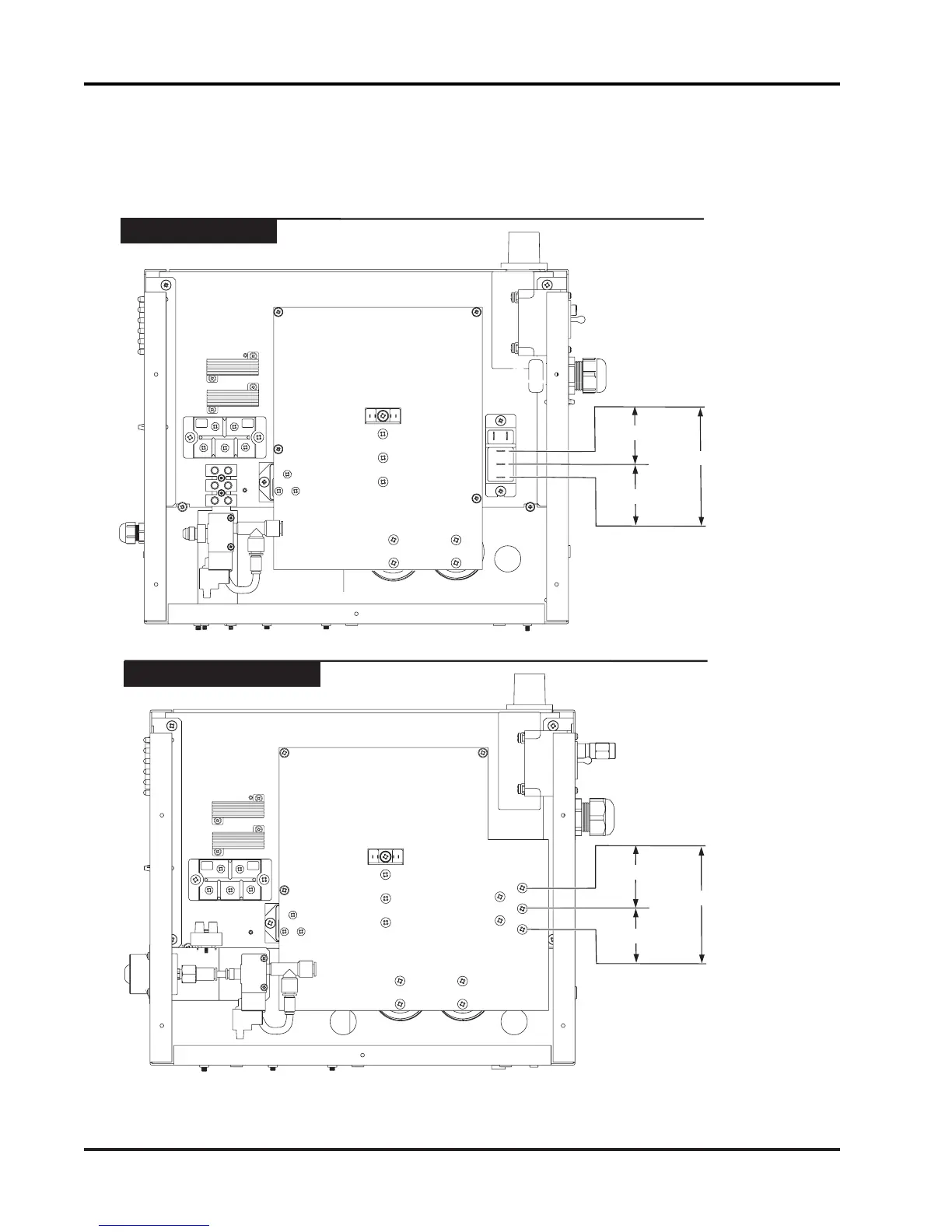

Figure 3-5 Voltage Check #1 - Input of Input Diode Bridge
Voltage Check #1 - Figure 3-5
• Check input voltage to the input diode bridge.
The AC voltage between any 2 input wires should equal the line voltage.
230V and 400V
208-240V and 480V
PMX600.22
8
10
9
= Line Voltage
= Line Voltage
= Line Voltage
= Line Voltage*
= Line Voltage
= Line Voltage*
*480V Only
