MAINTENANCE
3-23
powermax600 Service Manual
Voltage Check #2 - Figure 3-6
• Check output voltage of the input diode bridge.

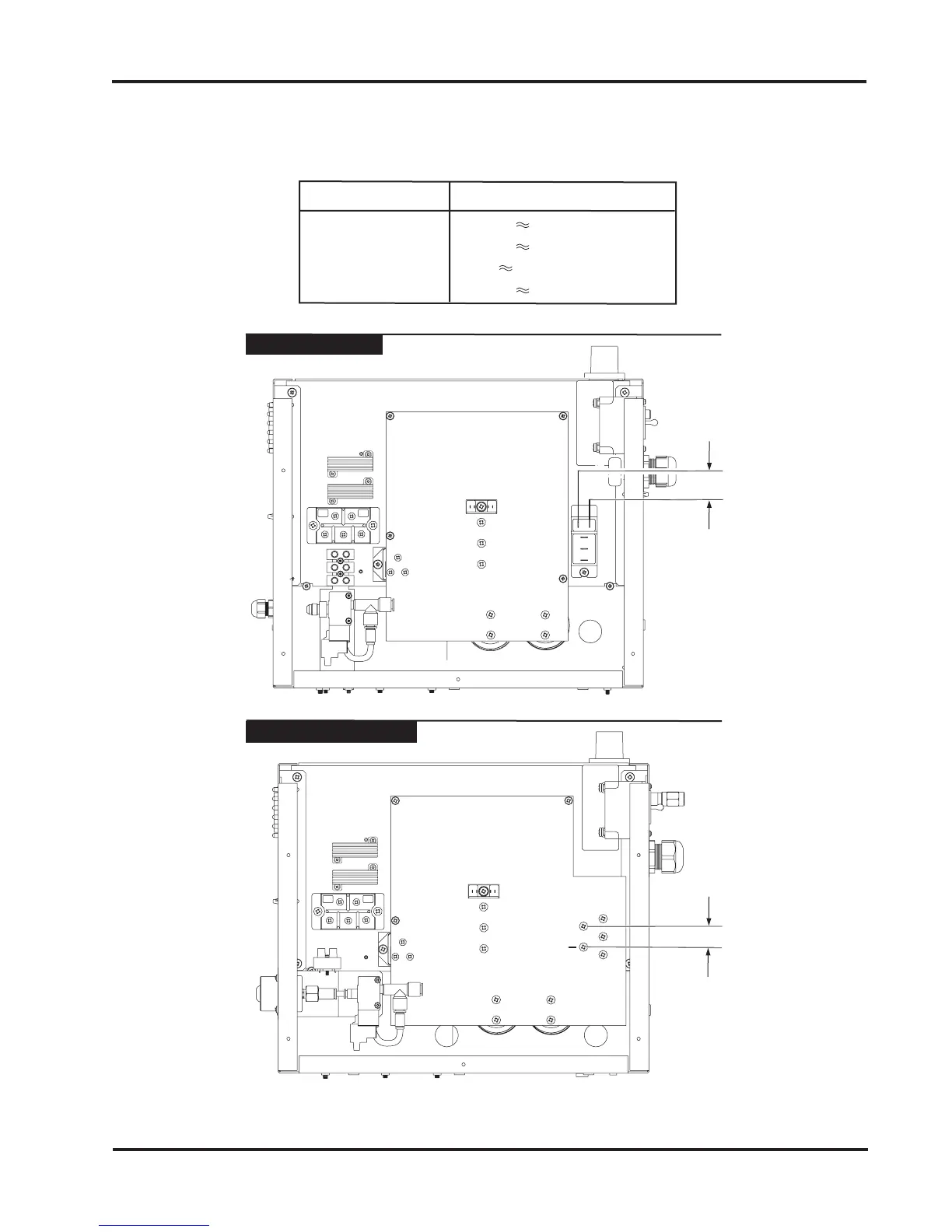

Figure 3-6 Voltage Check #2 - Output of Input Diode Bridge
230V and 400V
208-240V and 400V
PMX600.23
+
15
14
230 VAC
400 VAC
208-240 VAC
480 VAC
325 VDC
565 VDC
300-330 VDC
660 VDC
Line Voltage Output at Bridge
