Hyster F007 - Valve Assembly; Slide Pad Replacement

5000 SRM 969 Slide Pad Replacement
Valve Assembly
NOTE: The 140-bar relief valve is located on top of
carriage.
1. Loosen lock nut. See Figure 12.
2. Turn bolt clockwise to raise pressure. Turn bolt
counterclockwise to lower pressure.
3. Tighten lock nut.

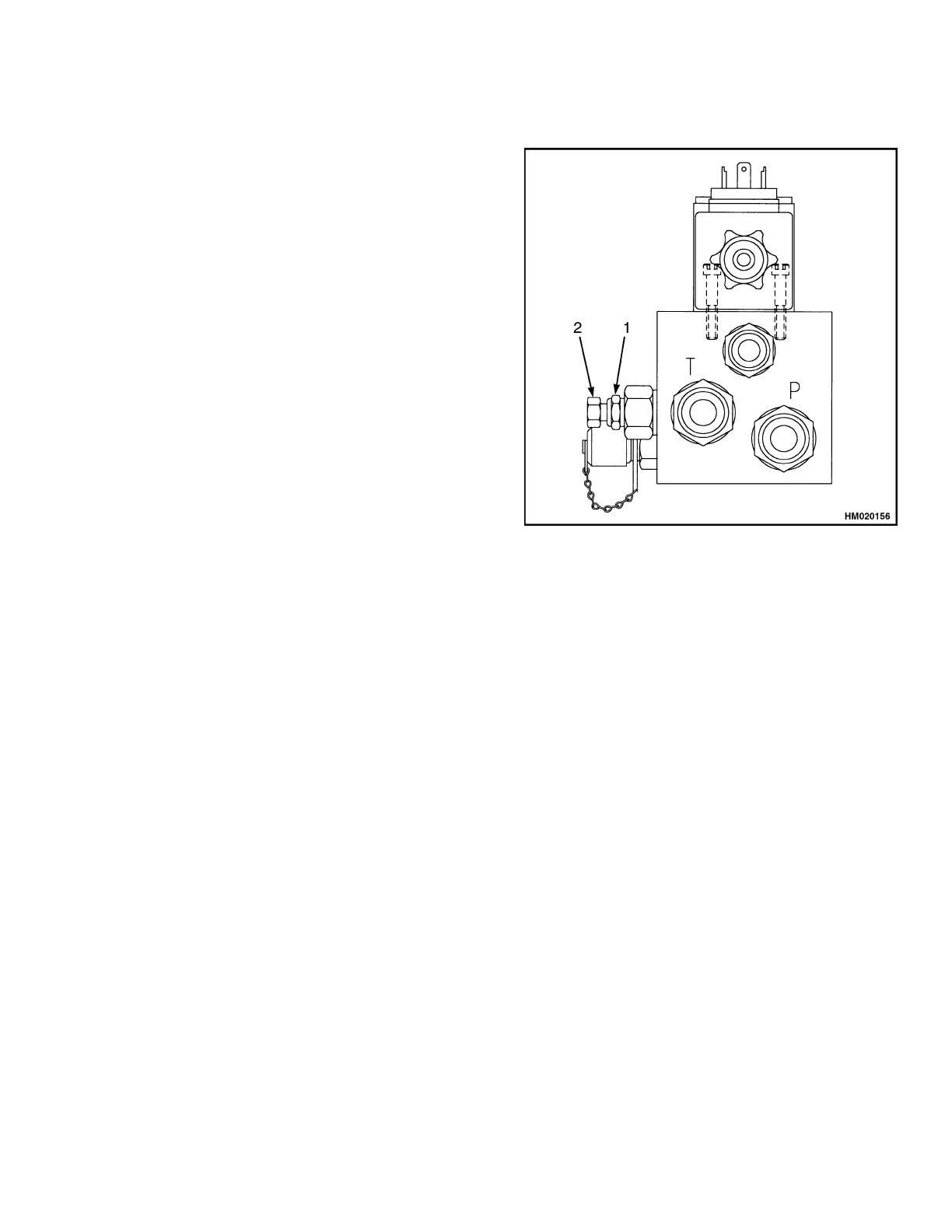

1. LOCK NUT 2. BOLT
Figure 12. Valve Assembly
Slide Pad Replacement
NOTE: To gain access to the far end slide pads on end
beam, the vertical end beam needs to be removed.
1. Loosen bolts and brackets holding slide pads in
place. See Figure 13.
2. Remove slide pad and replace if worn.
3. Mount bracket and bolts as necessary to hold
pads in place.
19
