5000 SRM 969 Diagrams, Schematics, or Arrangements
Legend for Figure 15
1. HYDRAULIC MOT
OR
2. FITTING, O-RING
3. HOSE ASSEMBLY
4. HOSE ASSEMBLY
5. HOSE ASSEMBLY
6. VALVE ASSEMBLY
7. FITTING, O-RIN
G
8. FITTING, O-RING
9. MANIFOLD
10. HOSE ASSEMBLY
11. EXTENSION CYLINDER ASSEMBLY
12. HOSE ASSEMBLY
13. HOSE ASSEMBLY
14. SIDESHIFT ASS
EMBLY
15. FITTING, O-RING
16. HOSE ASSEMBLY
17. HOSE ASSEMBLY
18. VALVE ASSEMBLY
19. HOSE ASSEMBLY
20. HOSE ASSEMBLY
21. FITTING, O-RING
22. FITTING, O-RING
23. HOSE ASSEMBLY
24. HOSE ASSEMBLY
25. MANIFOLD
26. FITTING, O-RING

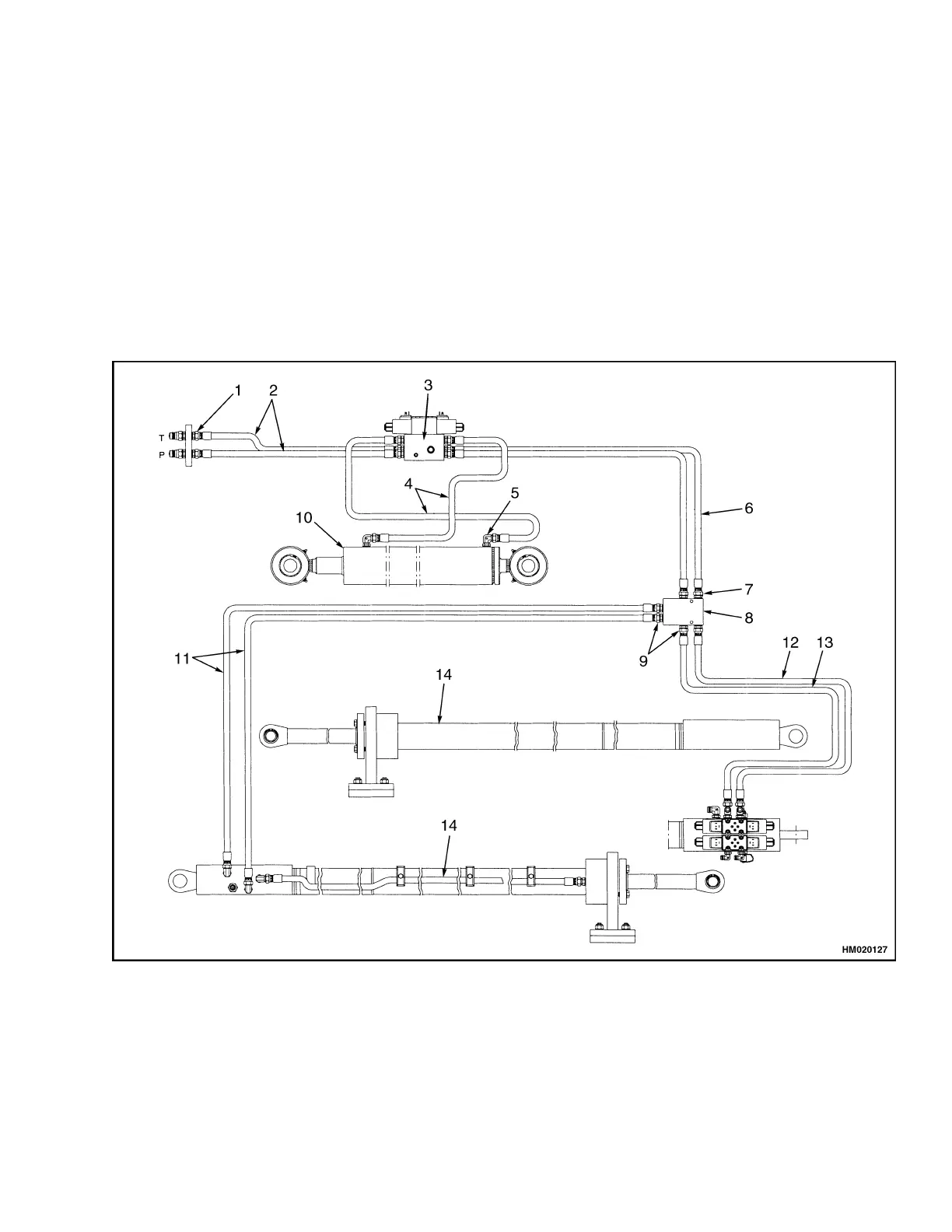

1. FITTING, O-RING
2. HOSE ASSEMBLY
3. VALVE ASSEMBLY
4. HOSE ASSEMBLY
5. FITTING, O-RING
6. HOSE ASSEMBLY
7. FITTING, O-RING
8. MANIFOLD
9. FITTING, O-RING
10. SIDESHIFT CYLINDER
ASSEMBLY
11. HOSE ASSEMBLY
12. HOSE ASSEMBLY
13. HOSE ASSEMBLY
14. EXTENSION CYLINDER
ASSEMBLY
Figure 16. Hydraulic System Model 555
31
