LITHIUM SERIES® II Electric Torque Tool Operations Manual
20

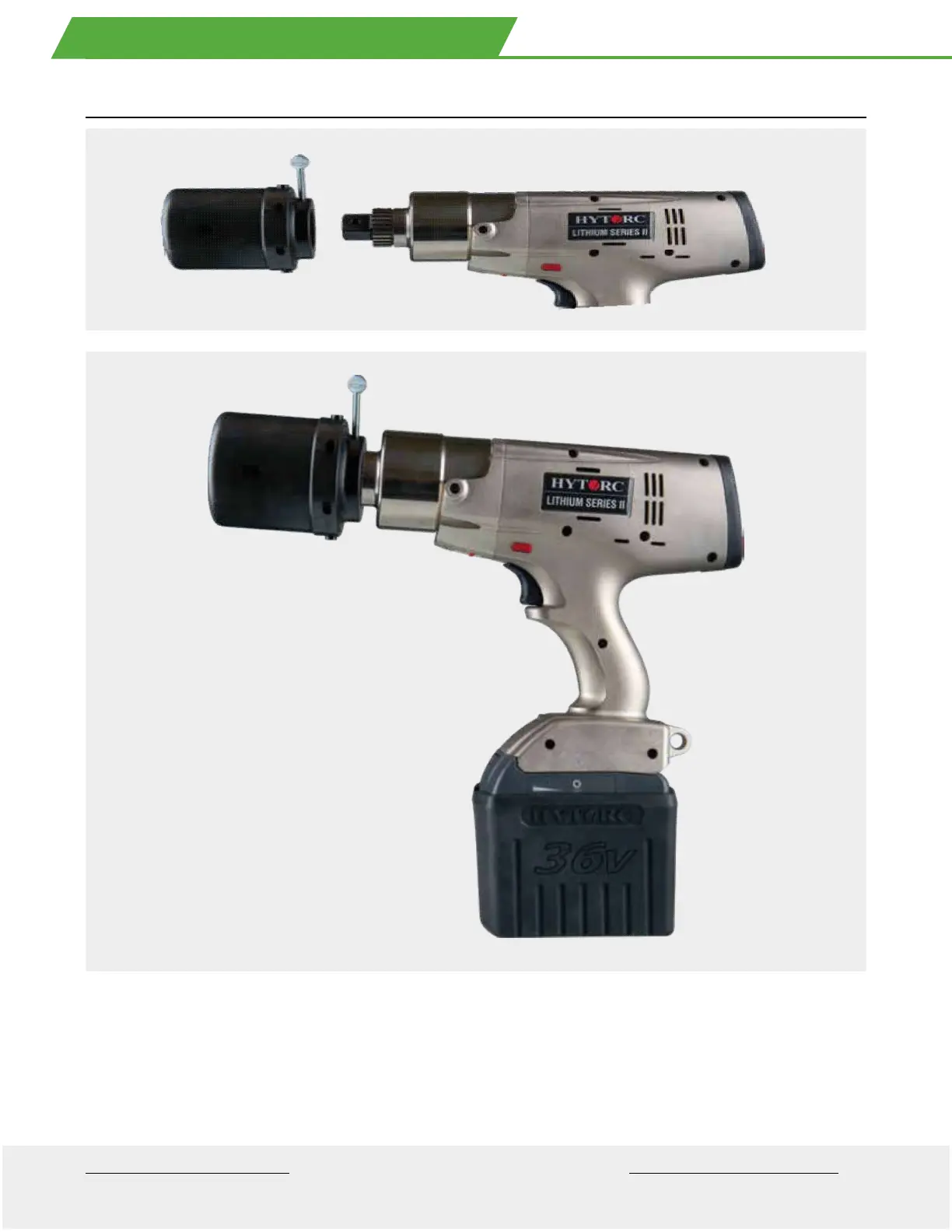

INSTALL HYTORC WASHER DRIVER
• The LITHIUM SERIES® II Tool is easily conigured or tightening bolts where the HYTORC Washer is used
• Identiy the appropriate size HYTORC Washer Driver
• Slide the washer driver over the square drive and spline while aligning the thumb screw with the lat on the spline
• Tighten the thumb screw to secure the driver
• For longer term use it is recommended to pin the drive to the square drive
• Challenge the driver to make sure it is securely attached
14 . B OLTI NG WI TH THE HY TORC WASHE R
