The adapter has the MIPI-20 male header on top for connecting the I-jet MIPI-20 cable,
and a cTI-20 style female header (socket) on the bottom. The cTI-20 JTAG header is a
20-pin, double-row, high-density 0.05 in × 0.1 in (1.27 mm × 2.56 mm) pitch connector
with a key (plug) in position 6 to prevent misconnections. In case the plug is missing, a
white arrow on pin 1 of the cTI-20 connector helps you ensure proper orientation.

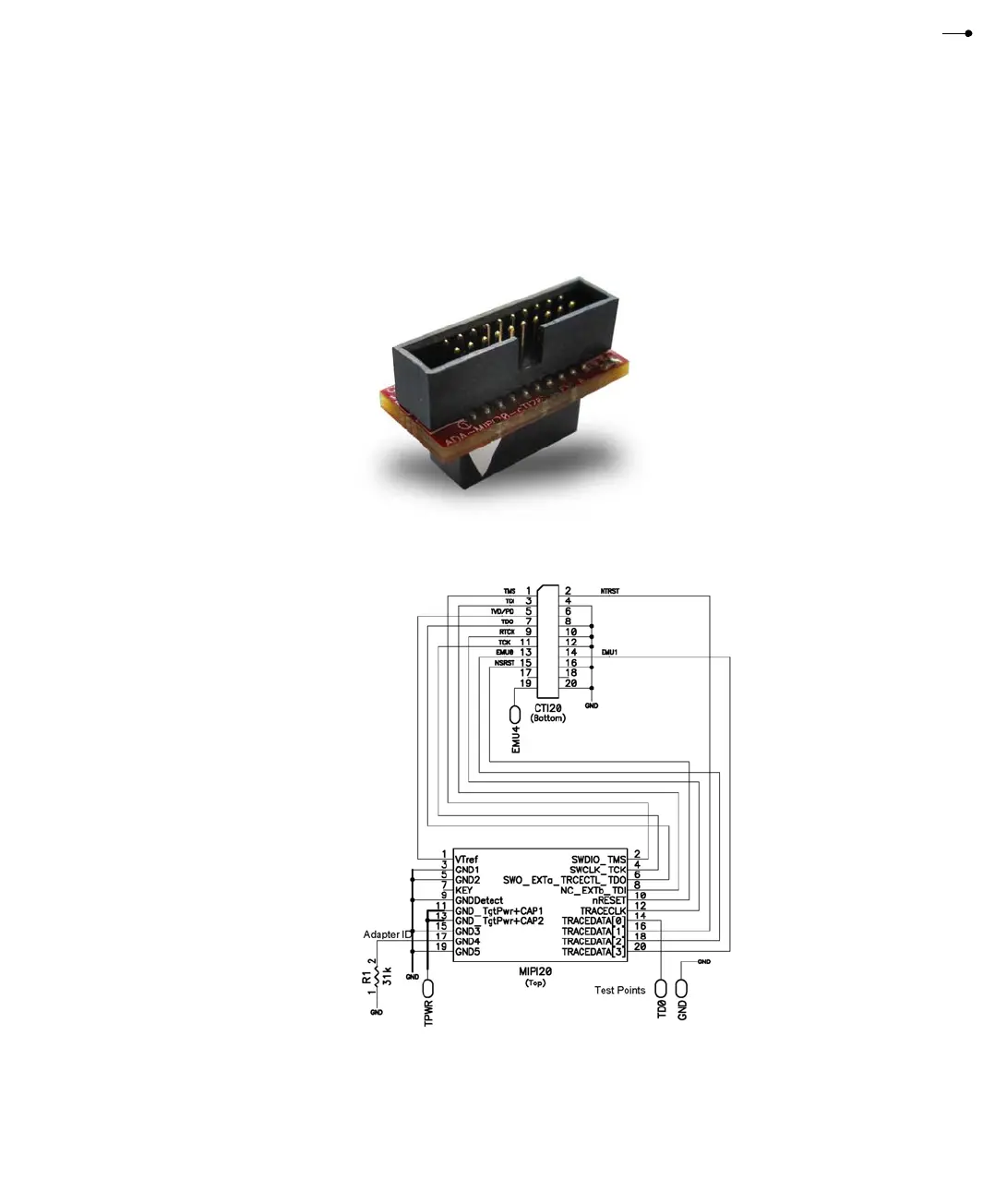

This is a diagram of the ADA-MIPI20-cTI20 adapter:
