Technical specifications
IAR Debug Probes User Guide
I-jet®, I-jet Trace, and I-scope™

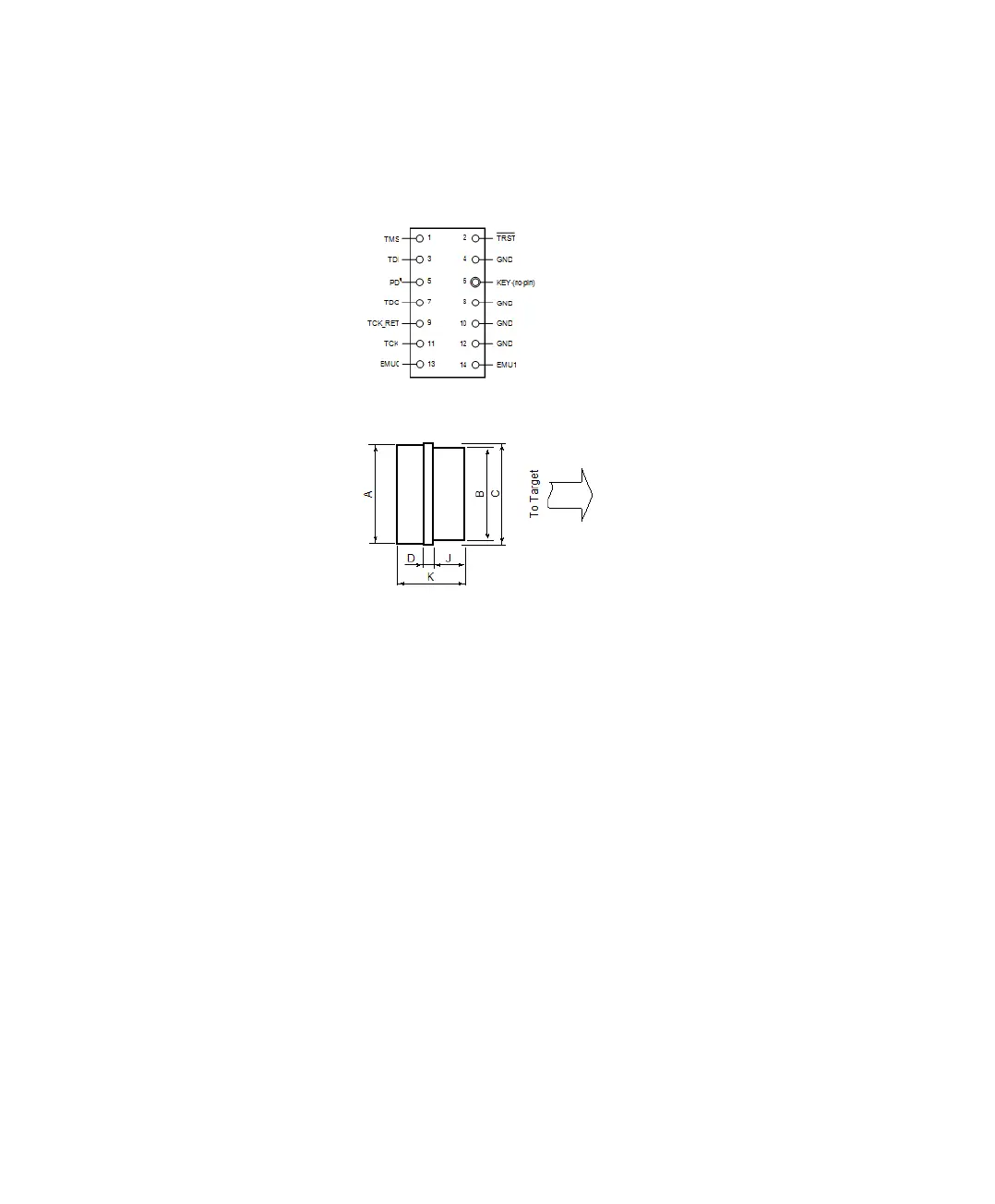

This is the pinout of the target cTI20 JTAG header. Pin 6 should be missing to indicate
the proper orientation.
These are the top view dimensions of the ADA-MIPI20-TI14 adapter:
TI14 header information (for target board)
The TI14 header is manufactured by Samtec USA. The model number is
TSM-107-01-F-DV. For more information, see the manufacturer's web page:
http://www.samtec.com/products/tsm.
The ADA-MIPI20-cTI20 adapter
The ADA-MIPI20-cTI20 adapter adapts the I-jet standard MIPI-20 cable pinout to the
Texas Instruments compact 20-pin JTAG interface used on some newer OMAP,
DaVinci, and other TMS320, TMS470, and TMS570 target boards.
A 0.74 in (18.9 mm)
B 1.0 in (25.4 mm)
C 0.76 in (19.4 mm)
D 0.062 in (1.6 mm)
J 0.38 in (9.6 mm)
K 0.80 in (20.3 mm)
