I-jet Trace
47

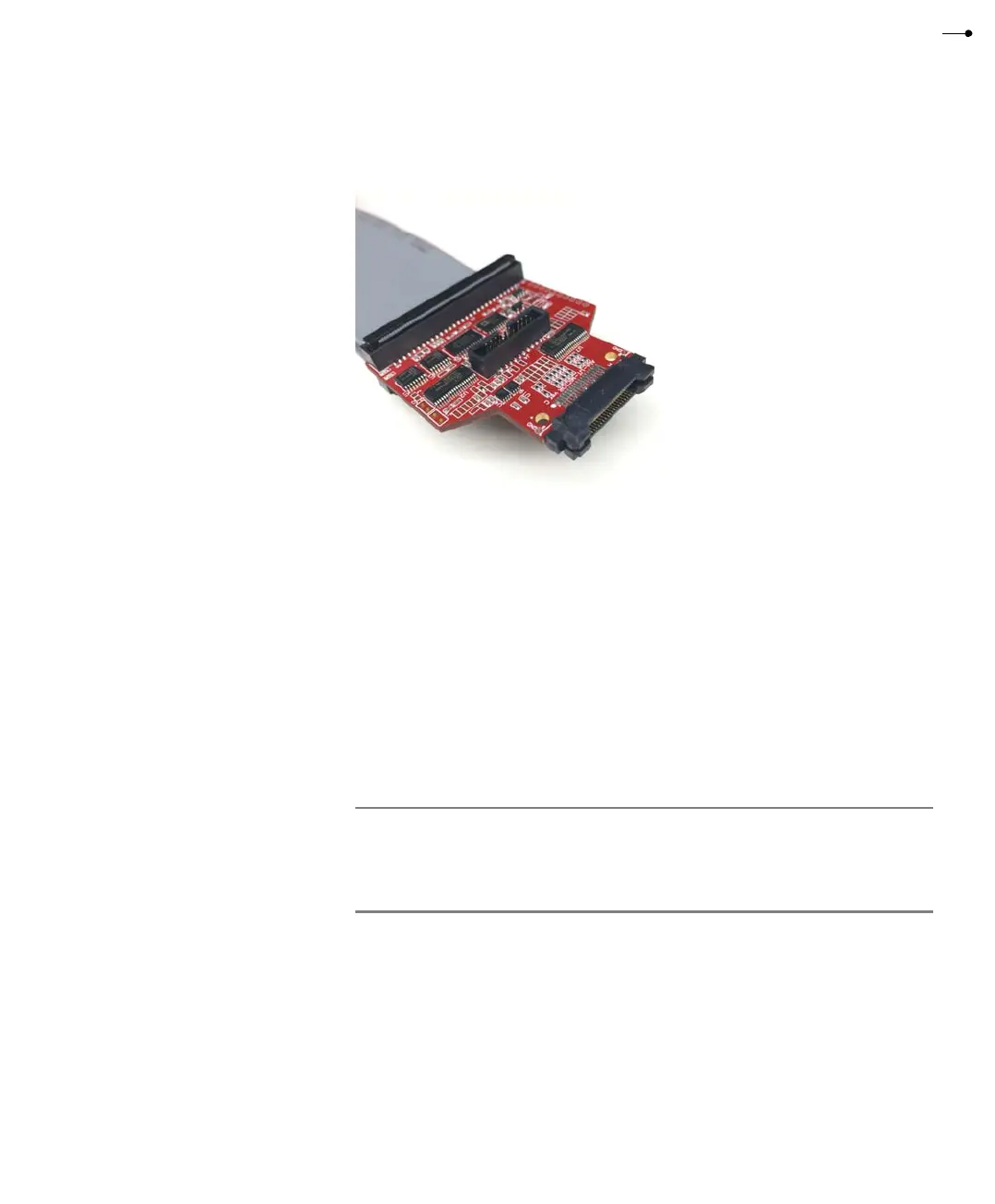

The mating connector for Mictor-38 on target board is AMP/Tyco 5767054-1.
INDICATORS
I-jet Trace has four LED indicators on the top, marked TRC, TPWR, DBG, and USB.
The following indicators and their statuses are described in detail:
● The TRC indicator
● The TPWR indicator (Target power)
● The DBG indicator (JTAG/SWD/cJTAG)
● The USB indicator
The TRC indicator
Indicator status Description
Off No trace.
Green Collecting trace data and trace clock is present.
Red Trace data collection is enabled but the trace clock is not present.
Orange blinking Collecting SWO trace data.
Table 16: TRC indicator statuses
