AFE1_AFE2-1:1
I-jet Trace
51
Signal Pin Pin Signal
VREF DEBUG 1 2 TMS
TCK 3 4 TDO
TDI 5 6 nSRST
RTCK 7 8
nTRST 9 10 DBGRQ

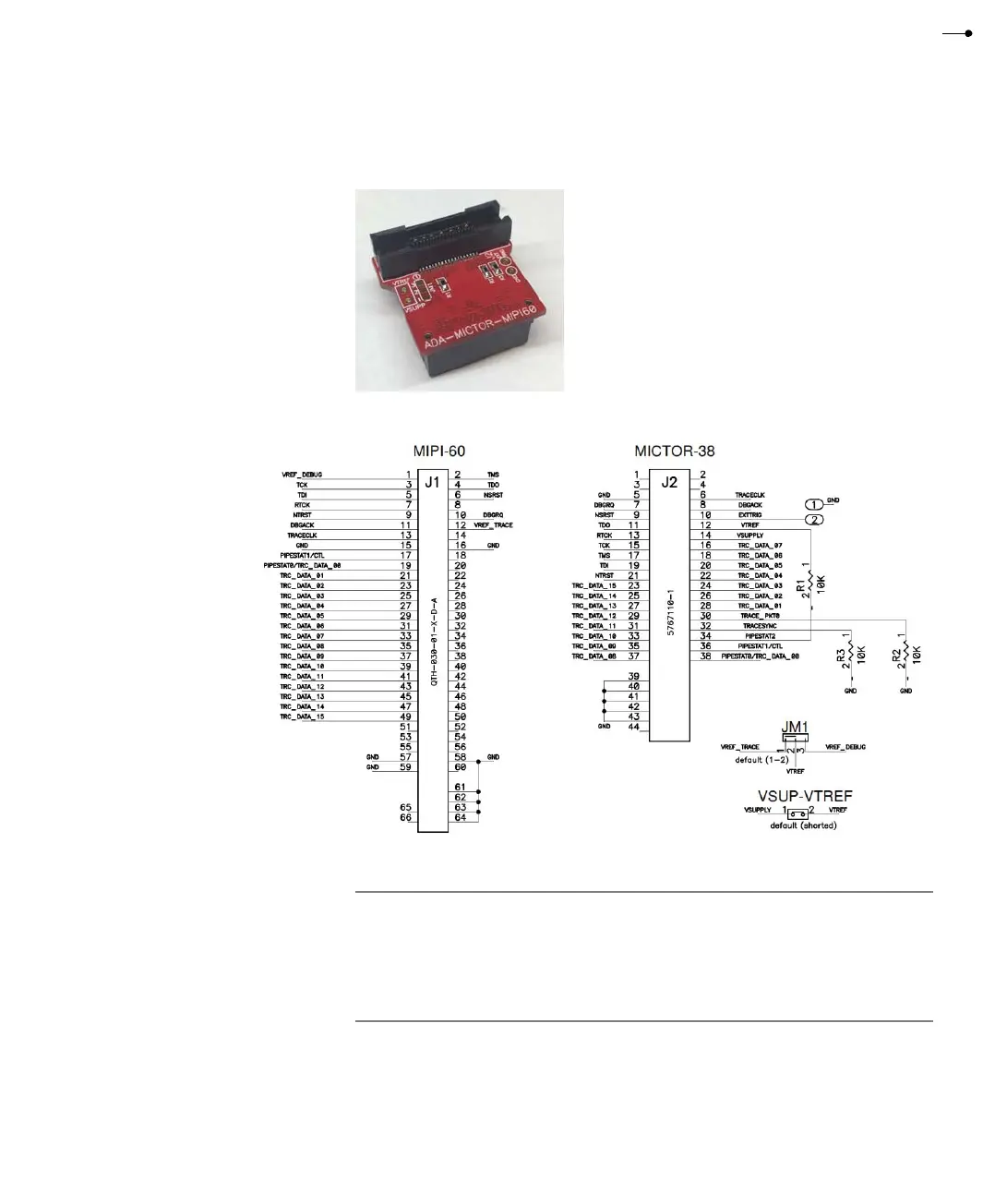

Table 21: ADA-MICTOR-MIP160 adapter pinout
