INSTALLATIONS
IB895 User’s Manual 9

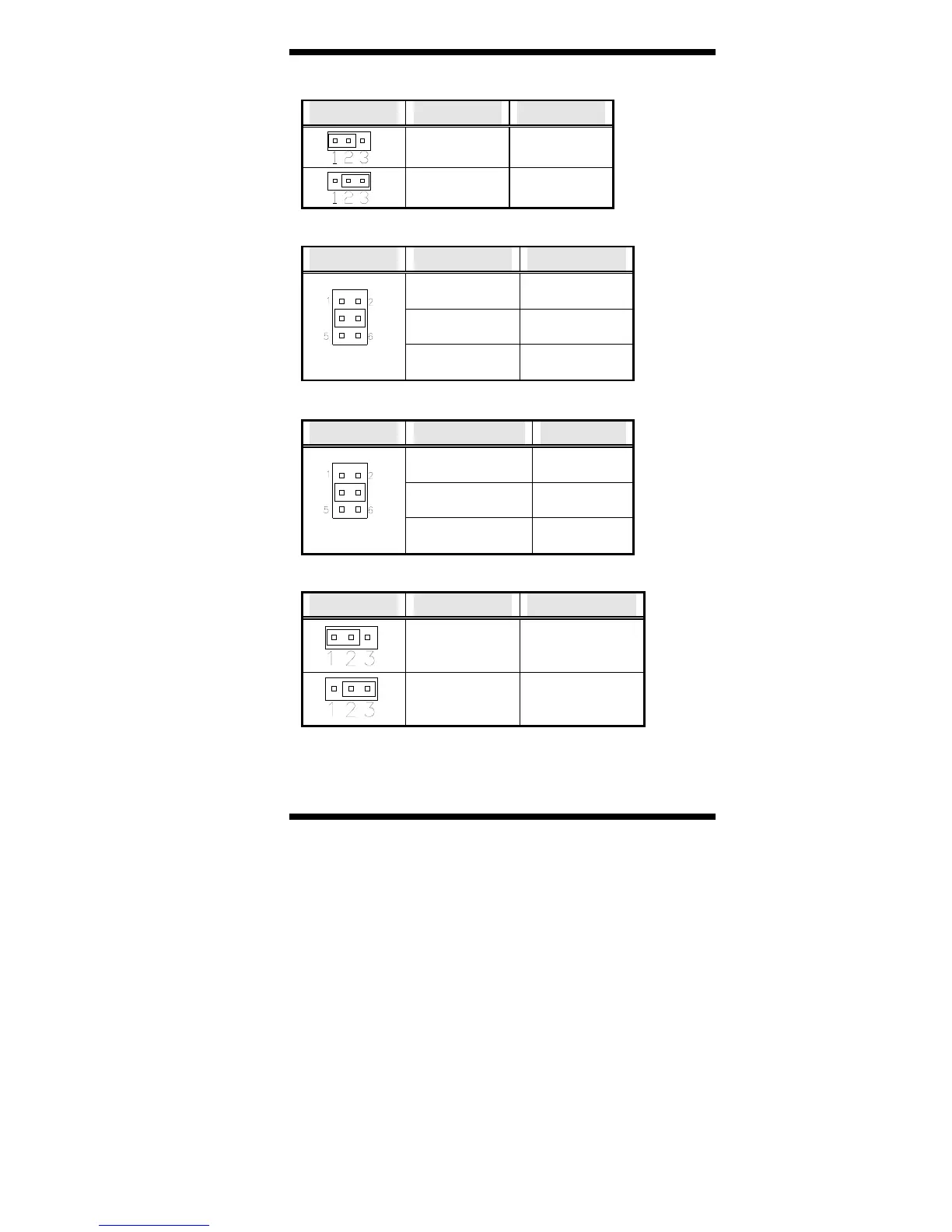

JP2: Clear CMOS Contents
JP2 Setting Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP3: BL Voltage Setting
JP3 Setting Function
Pin 1-2
Short/Closed
+3.3V
Pin 3-4
Short/Closed
+5V
Pin 5-6
Short/Closed
+12V(Default)
JP5: COM1 RS232 RI/+5V/+12V Power Setting
JP5 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 5-6
Short/Closed
+5V
JP6: LVDS Panel Power Selection
JP6 Setting Panel Voltage
Pin 1-2
Short/Closed
3.3V (default)
Pin 2-3
Short/Closed
5V
