INSTALLATIONS
IB895 User’s Manual 13

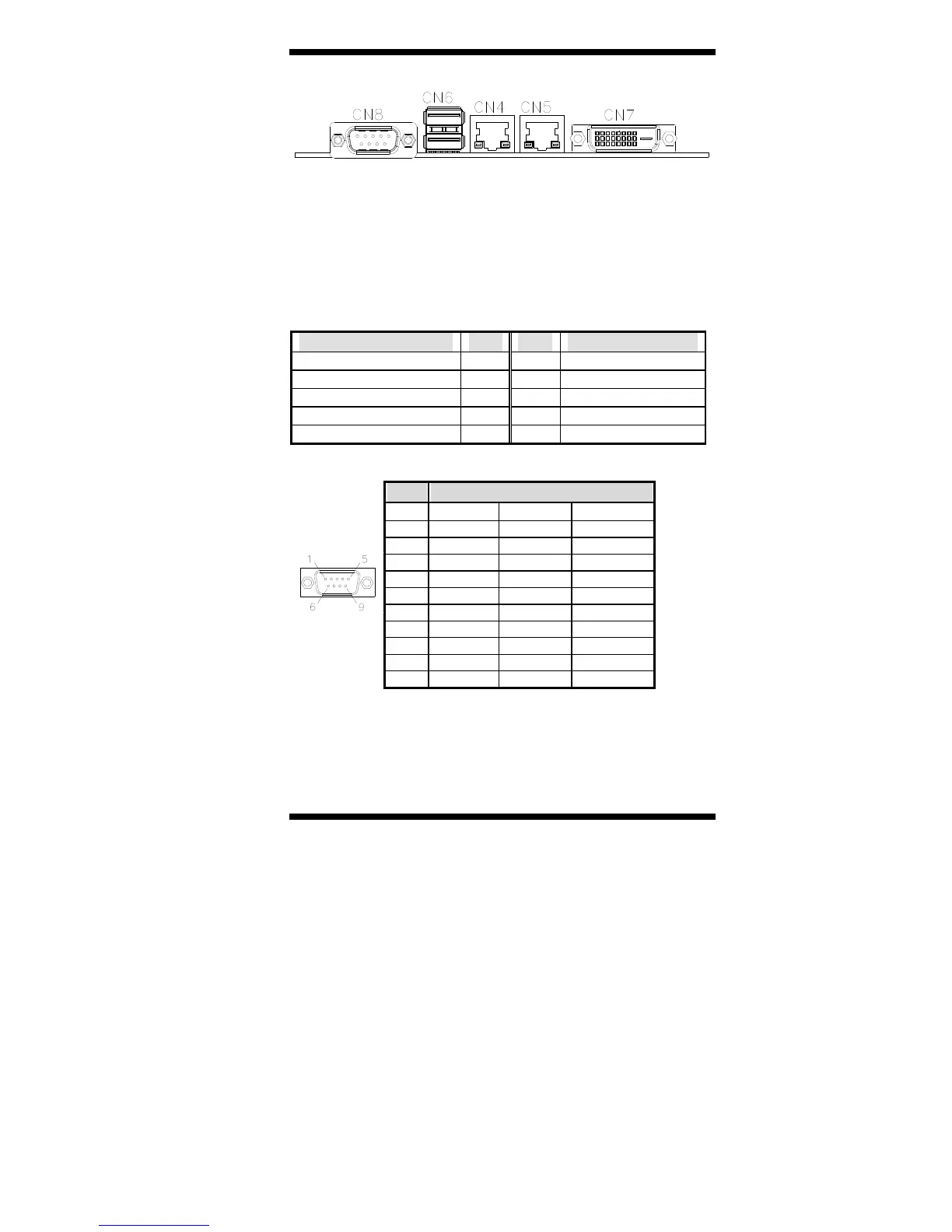

CN4, CN5: Gigabit LAN (Intel 82583V)
This RJ45 LAN connector (CN4 only) features for EUP LAN wakeup.
CN6: USB 1/2 Connector
CN7: VGA DVI-I Connector
CN8: DB9 Connector
(COM1) is a DB-9 connector.
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
COM1 is jumper-less for RS-232, RS-422 and RS-485 and configured
with BIOS Selection.
[
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD RX+ DATA-
2 RX RX- DATA+
3 TX TX+ NC
4 DTR TX- NC
5 Ground Ground Ground
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
10 NC NC NC
