IBC AHU Series Installation And Operating Manual

Heating capacity
AHU 800 - Heating Capacity (Ent Dry Bulb 70°F) @ 800 CFM
Entering Water Temperature 3 GPM 4 GPM 5 GPM
195°F (90°C) 72.9 MBH 76.9 MBH 79.4 MBH
190°F (88°C) 65.7 MBH 70.2 MBH 73 MBH
180°F (82°C) 60 MBH 64.1 MBH 66.8 MBH
170°F (77°C) 54.4 MBH 58.1 MBH 60.5 MBH
160°F (71°C) 48.7 MBH 52.1 MBH 54.3 MBH
150°F (66°C) 43.1 MBH 46.2 MBH 48.1 MBH
140°F (60°C) 37.6 MBH 40.2 MBH 41.9 MBH
130°F (54°C) 32 MBH 34.3 MBH 35.8 MBH
120°F (49°C) 26.5 MBH 28.5 MBH 29.7 MBH
110°F (43°C) 21.1 MBH 22.6 MBH 23.7 MBH

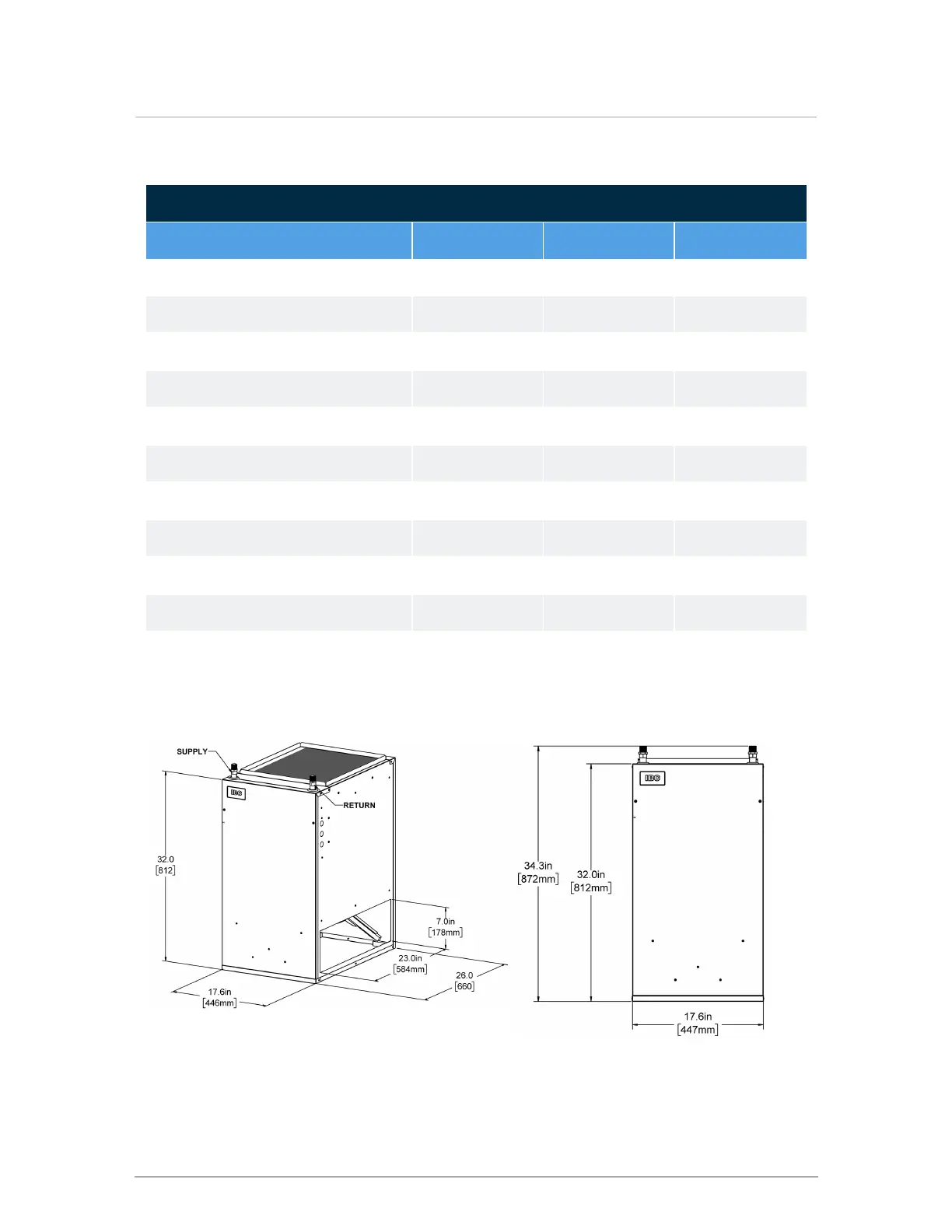

Table 1 Heating Capacity rating at 800 scfm (cubic feet / minute)
Cabinet and air supply dimensions
Figure 1 Supply and return air, boiler supply and return Figure 2 Frontal view
8
Section: Specifications
