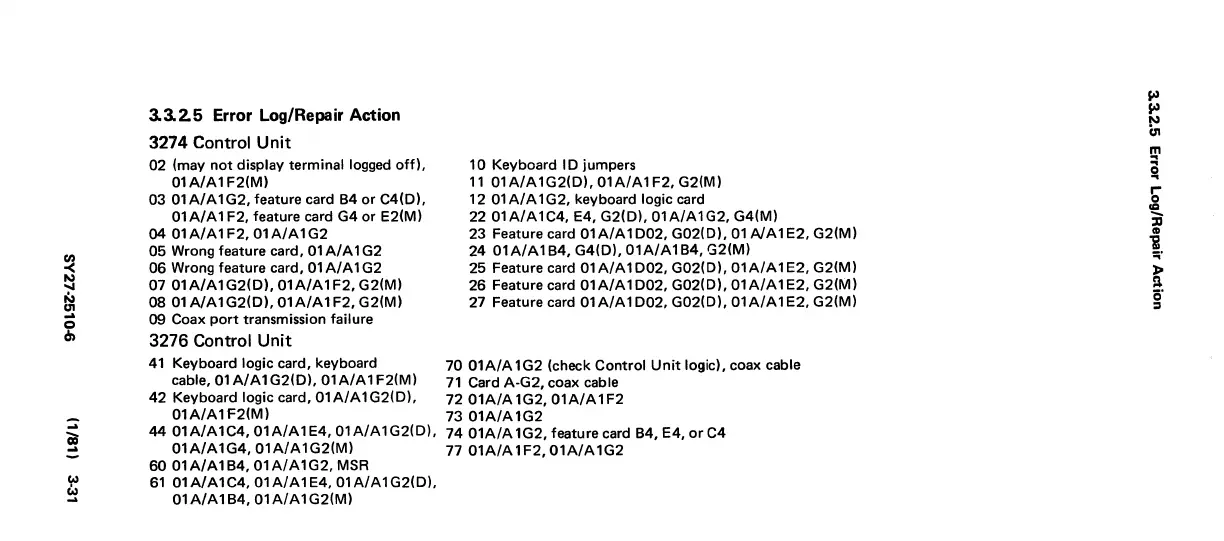

3.3.2.5 Error Log/Repair Action
3274
Control Unit
02 (may not display terminal logged off).
01A/A1F2(M)
03 01A/A1G2, feature card B4 or C4(0),
01 A/A 1 F2, feature card G4 or E2(M)
04 01 A/A 1 F2, 01 A/A 1 G2
05 Wrong feature card, 01 A/A 1 G2
06 Wrong feature card, 01A/A1G2
07 01 A/Al G2(0), 01A/A 1 F2, G2(M)
08 01 A/Al G2(0), 01A/A 1 F2, G2(M)
09 Coax port transmission failure
3276 Control Unit
41 Keyboard logic card, keyboard
cable, 01 A/Al G2(0), 01 A/A 1 F2(M)
42 Keyboard logic card, 01A/A lG2(0).
01A/A1F2(M)
44 01A/A1C4, 01A/A1E4, 01A/A1G2(0),
01A/A1G4,01A/A1G2(M)
6001 A/Al B4, 01 A/A1G2, MSR
61 01A/A1C4, 01A/A1E4, 01A/A1G2(0).
01A/A1B4,01A/A1G2(M)
10 Keyboard 10 jumpers
1101A/A1G2(01.01A/A1F2,G2(M)
12 01A/A1G2, keyboard logic card
22
01A/A1C4, E4, G2(0), 01A/A1G2, G4(M)
23 Feature card 01A/A 1002, G02(Dl. 01 AlA 1 E2, G2(M)
2401A/A1B4,G4(0),01A/A1B4,G2(M)
25 Feature card 01 A/Al 002, G02(D), 01A/A1 E2, G2(M)
26 Feature card
01 A/A 1002, G02( D), 01 A/ A 1 E2, G2(M)
27 Feature card
01 A/A 1002, G02(D), 01A/Al E2, G2(M)
70 01A/A 1 G2 (check Control Unit logic), coax cable
71 Card A-G2, coax cable
72 01A/A lG2, 01A/A1F2
7301A/A1G2
74 01A/A lG2, feature card B4, E4, or C4
77 01A/A1F2,01A/A1G2
