IBM 3278 Series

C
1

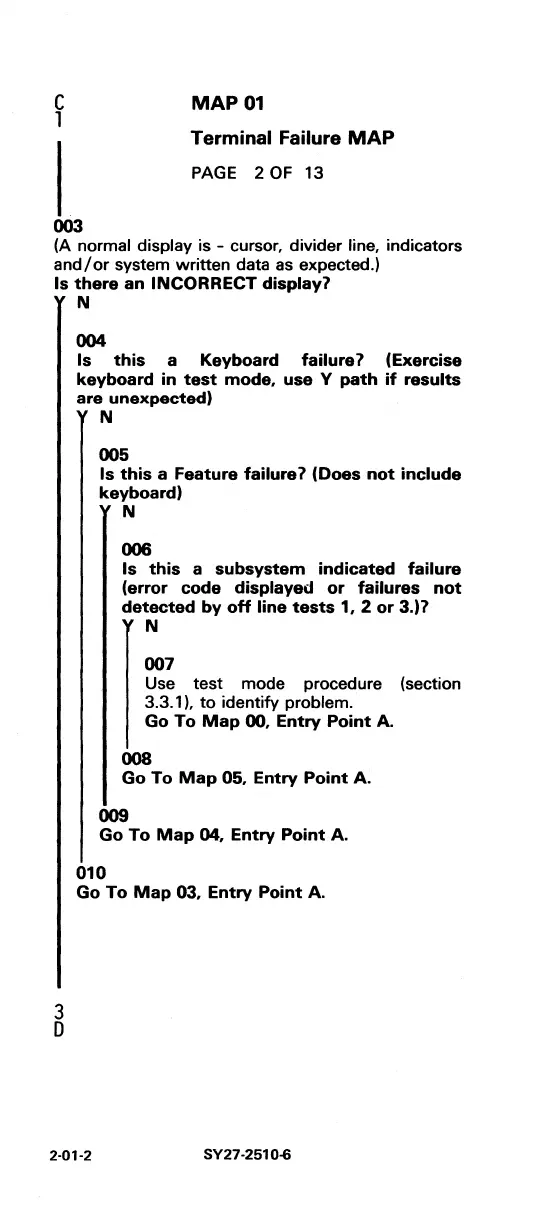

MAP 01
Terminal Failure MAP
PAGE 2 OF 13
003
(A normal display is - cursor, divider line, indicators
and/or system written data as expected.)
Is there an INCORRECT display7
3
D
N
004
Is this a Keyboard failure 7 (Exercise
keyboard in test mode, use Y path if results
are unexpected)
N
005
Is this a Feature failure7 (Does not include
keyboard)
N
006
Is this a subsystem indicated failure
(error code displayed or failures not
detected by off line tests 1, 2 or 3.)7
N
007
Use test mode procedure (section
3.3.1),
to identify problem.
Go To Map 00, Entry Point A.
008
Go To Map 05, Entry Point A.
009
Go To Map 04, Entry Point A.
010
Go To Map 03, Entry Point A.
2·01·2
SY27·2510-S
