K L M
555
031

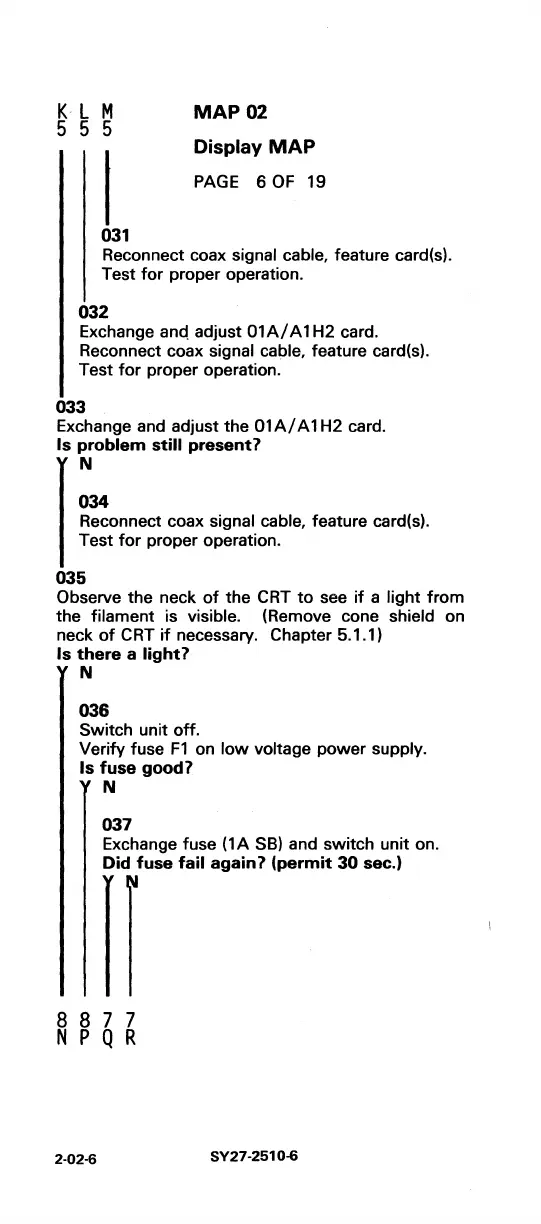

MAP 02
Display
MAP
PAGE
6
OF
19
Reconnect coax signal cable, feature card(s).
Test
for
proper operation.
032
Exchange
and.
adjust
O1AI
A 1 H2 card.
Reconnect coax
signal cable, feature card(s).
Test
for
proper operation.
033
Exchange and adjust
the
01
AI
A 1 H2 card.
Is
problem
still
present?
I
:34
Reconnect coax signal cable, feature card(s).
Test
for
proper operation.
035
Observe the neck
of
the
CRT
to
see
if
a
light
from
the filament is visible. (Remove cone shield on
neck
of
CRT
if
necessary. Chapter 5.1.1)
Is
there
a
light?
N
036
Switch unit
off.
Verify fuse
F1
on
low
voltage
power
supply.
Is
fuse
good?
N
037
Exchange fuse (1A S8) and switch unit on.
Did
fuse
fail
again?
(permit
30
sec.)
If
887
7
N P Q R
2·02·6
SY27-2510-6
To Next Page
