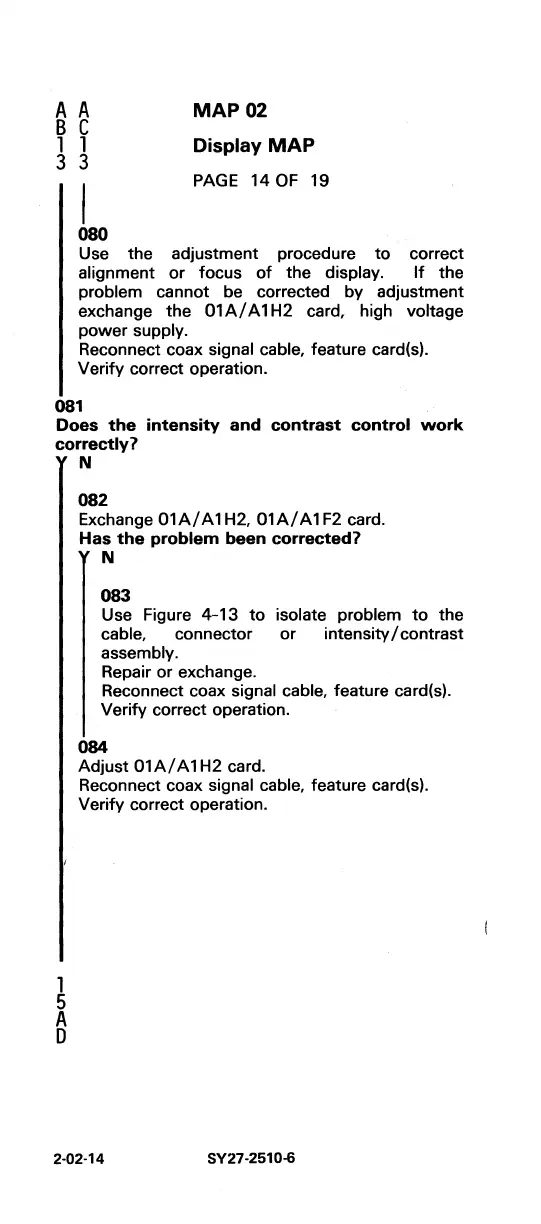

MAP 02
Display
MAP
PAGE
14
OF
19
080
Use
the
adjustment procedure
to
correct
alignment
or
focus
of
the display.
If
the
problem cannot be corrected
by
adjustment
exchange the
01
AI
A 1 H2 card, high voltage
power
supply.
Reconnect coax signal
cable, feature card(s).
Verify correct operation.
081
Does
the
intensity and contrast control
work
correctly?
1
5
A
D
N
082
Exchange
01
AlA
1 H2,
01
AlA
1
F2
card.
Has
the
problem been corrected?
N
083
Use Figure
4-13
to
isolate problem
to
the
cable, connector
or
intensity I contrast
assembly.
Repair or exchange.
Reconnect coax signal
cable, feature card(s).
Verify correct operation.
084
Adjust
01
AlA
1 H2 card.
Reconnect coax signal
cable, feature card(s).
Verify correct operation.
