IBM 3278 Series

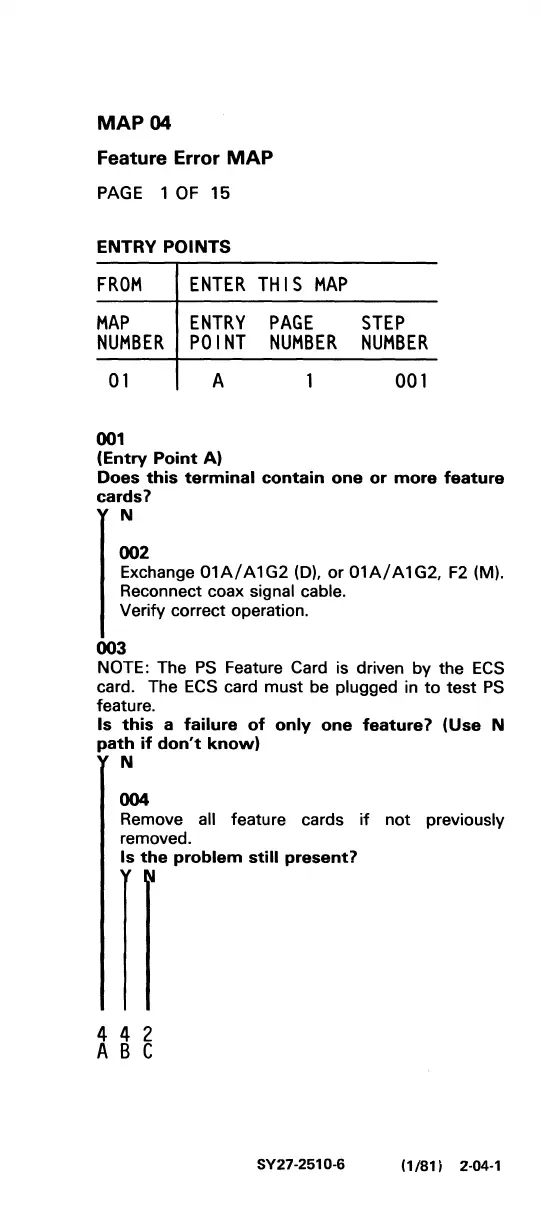

MAP 04
Feature Error MAP
PAGE 1 OF 15
ENTRY POINTS
FROM ENTER THIS MAP
MAP
NUMBER
01
001
ENTRY
POINT
A
(Entry Point A)
PAGE
NUMBER
STEP
NUMBER
001
Does this terminal contain one or more feature
cards?
N
002
Exchange 01 AI A 1 G2 (0), or 01 AI A 1 G2, F2 (M).
Reconnect coax
signal cable.
Verify correct operation.
003
NOTE: The PS Feature Card is driven by the ECS
card. The ECS card must be plugged in to test PS
feature.
Is this a failure of only one feature? (Use N
path if don't know)
N
004
Remove all feature cards if not previously
removed.
Is the problem still present?
442
ABC
SY27-2S10-6
(1/81) 2-04-1
