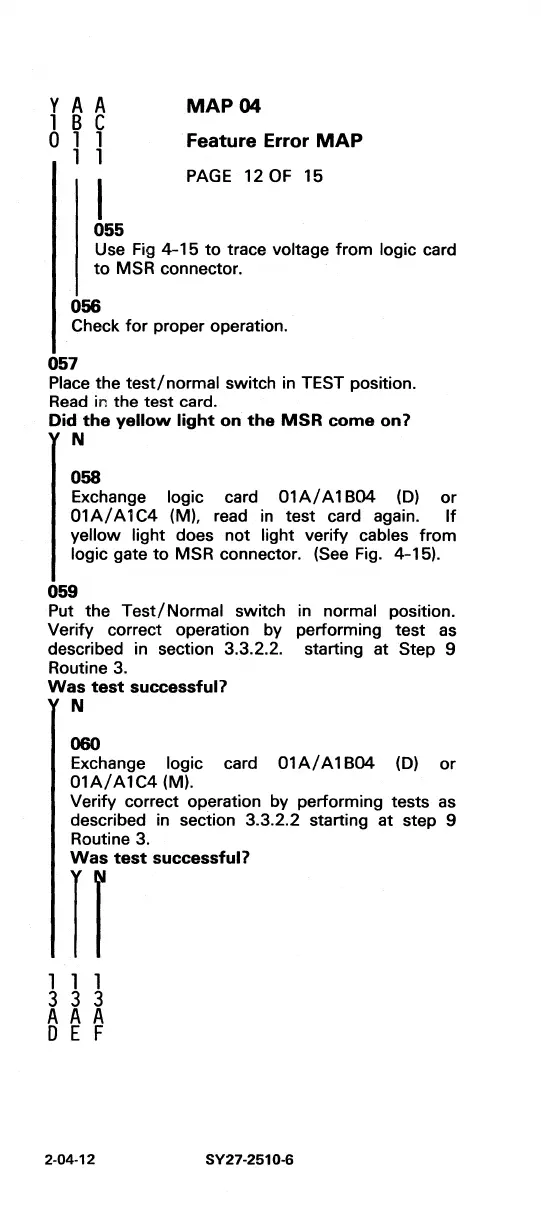

IBM 3278 Series

Y A A
1 B C
MAP 04
o 1 1
1 1
Feature Error MAP
PAGE 12 OF 15
055
Use Fig 4-15 to trace voltage from logic card
to MSR connector.
056
Check for proper operation.
057
Place the test/ normal switch in TEST position.
Read
ir. the test card.
Did the yellow light on the MSR come on?
N
058
Exchange logic card 01 A/ A 1 B04 (O) or
01A/A1C4 (M), read in test card again. If
yellow light does not light verify cables from
logic gate to MSR connector. (See Fig. 4-15).
059
Put the Test/Normal switch
Verify correct operation by
described in section 3.3.2.2.
Routine 3.
Was test successful?
N
060
in normal position.
performing
test as
starting at Step 9
Exchange
logic card 01 A/ A 1 B04 (O) or
01A/A1C4 (M).
Verify correct operation by performing tests
as
described in section 3.3.2.2 starting at step 9
Routine 3.
Was test successful?
If
1 1 1
333
A A A
o E F
2-04-12 SY27-2510-6
