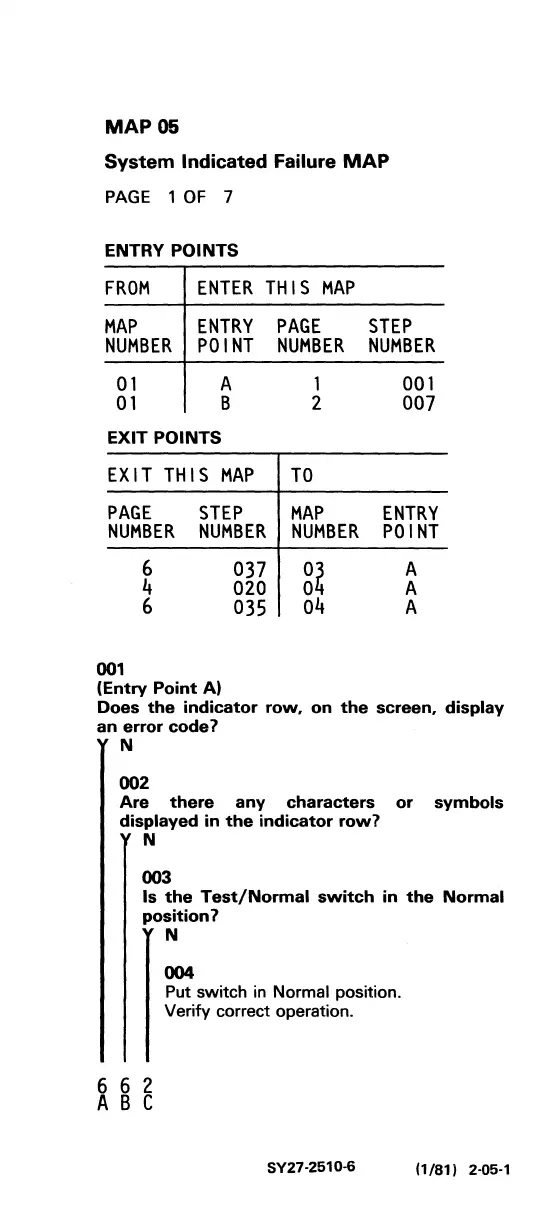

IBM 3278 Series

MAP 05
System Indicated Failure MAP
PAGE 1 OF 7
ENTRY POINTS
FROM
ENTER THIS MAP
MAP
ENTRY PAGE STEP
NUMBER POINT NUMBER NUMBER
01 A 1
001
01 B 2 007
EXIT POINTS
EXIT THIS MAP
TO
PAGE STEP
MAP ENTRY
NUMBER
NUMBER
NUMBER
POINT
6
037
g~
A
4 020 A
6
035
04
A
001
(Entry Point AI
Does the indicator row. on the screen. display
an error code?
N
002
Are there any characters or symbols
displayed in the indicator row?
N
003
Is the Test/Normal switch in the Normal
position?
662
ABC
N
004
Put switch in Normal position.
Verify correct operation.
SY27·251 0·6
(1/811 2·05-1
