AS/400e server 840
AS/400e server 840

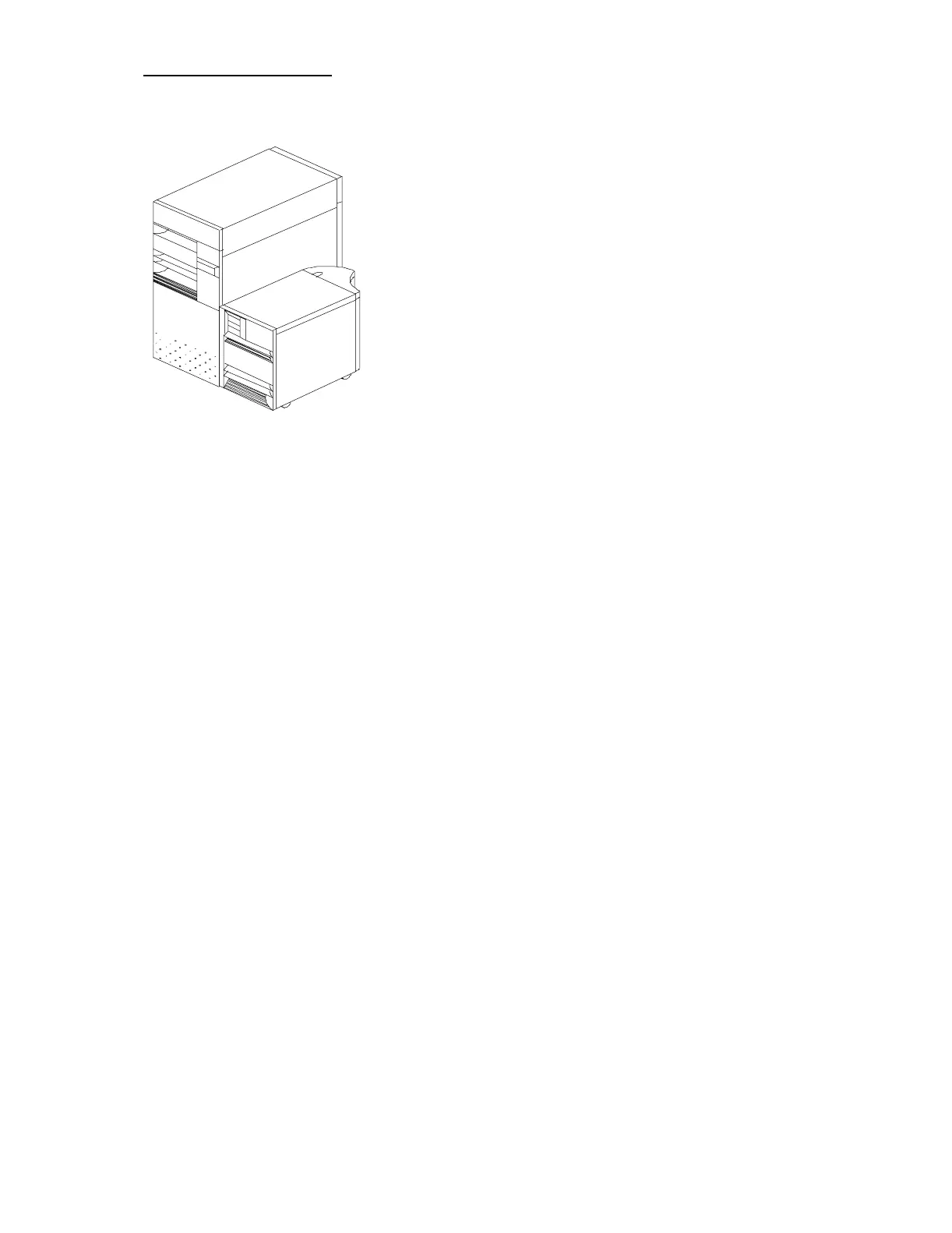

AS/400e server 840 System Unit
A minimum functional server consists of the base server unit and selected priced features.
Included in the base server are the physical package and power elements, a DASD
controller, an I/O controller, and a #9771 Base PCI 2-Line WAN with Modem as follows:
• System Unit (CEC) and #9079 Base I/O Tower
• Linecord Features (one for the system unit and one for the #9079)
• Clock Card (CCIN 25AA)
• Clock Daughter Card (CCIN 25AF)
• Terminator/Filler Card (CCIN 246C) (Quantity 2)—12 way only (processor #2418)
• #9079 Base I/O Tower
• PCI and CSP Card (CCIN 28AA)
• Operator Panel (CCIN 247C)
• #9737 Bus Expansion Card—16 HSL Ports
• Bus Adapter (CCIN 2691)
• #9943 Base PCI IOP
– Provides support for #9748 Base PCI RAID Disk Unit Controller
Provides support for up to 15 Disk Units, the required CD-ROM, and a feature Internal
Tape or a feature CD-ROM
– Provides support for base Console/Workstation IOA
The configurator will determine which feature combinations will be on the order based
on the System Console specify - #5540 or #5544
