IBM 9309 Rack Enclosures

414 AS/400e System Handbook

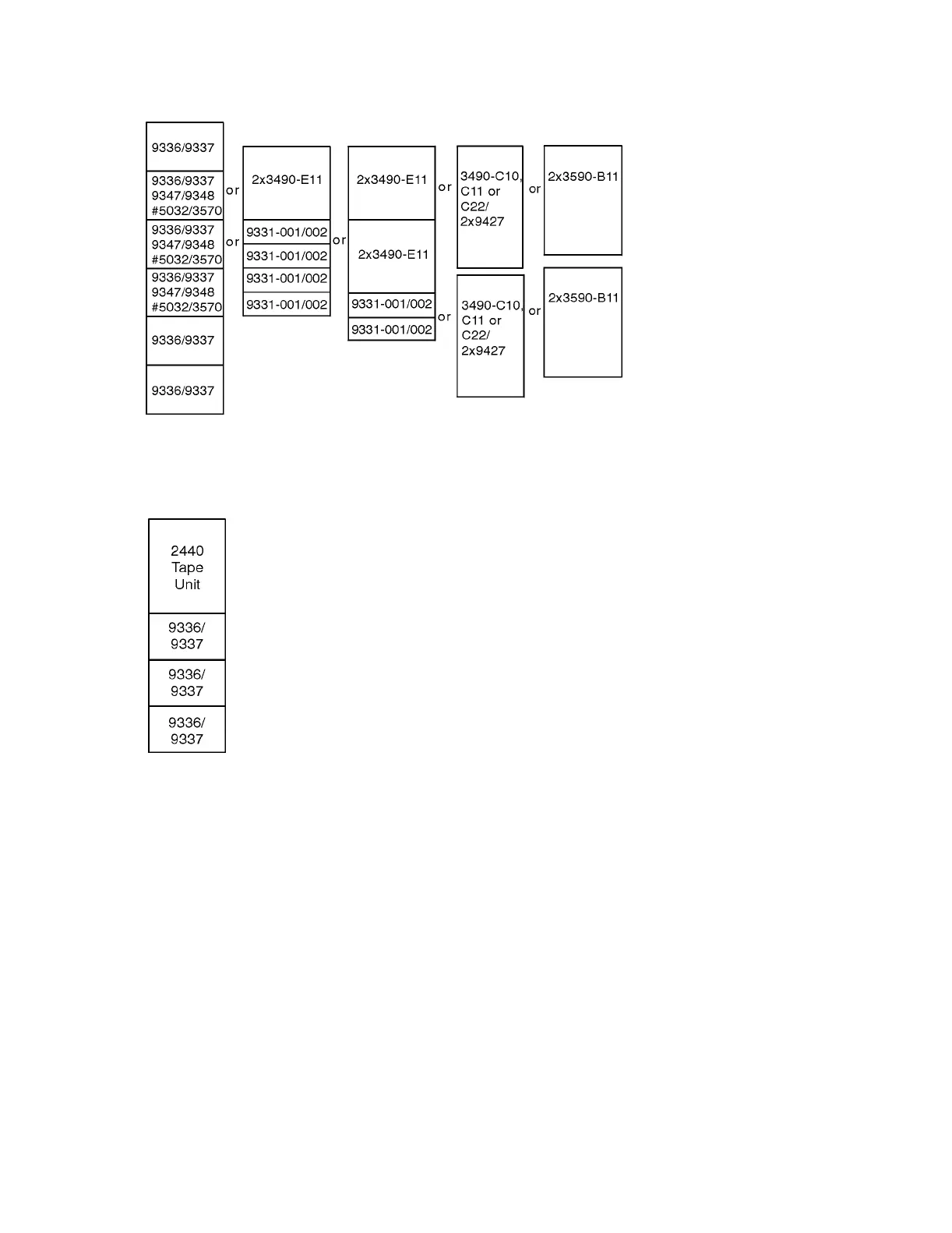

#9171, #9141, or #5043 General Purpose I/O Rack

#5032 is not supported in a #9141 rack.

2440 Rack

A 2440 rack supports the 2440 Tape Subsystem and can accommodate up to three DASD

units (#3907 for 9336s or #3908 for 9337s). If external DASD is installed in the 2440, a

wrap-around connector (part number 93X0167) and an EPO jumper (part number 6462413)

are required if attaching it directly to a 9406 System Unit.
