Major components of the blade server
Use this information to locate the major components on the blade server.

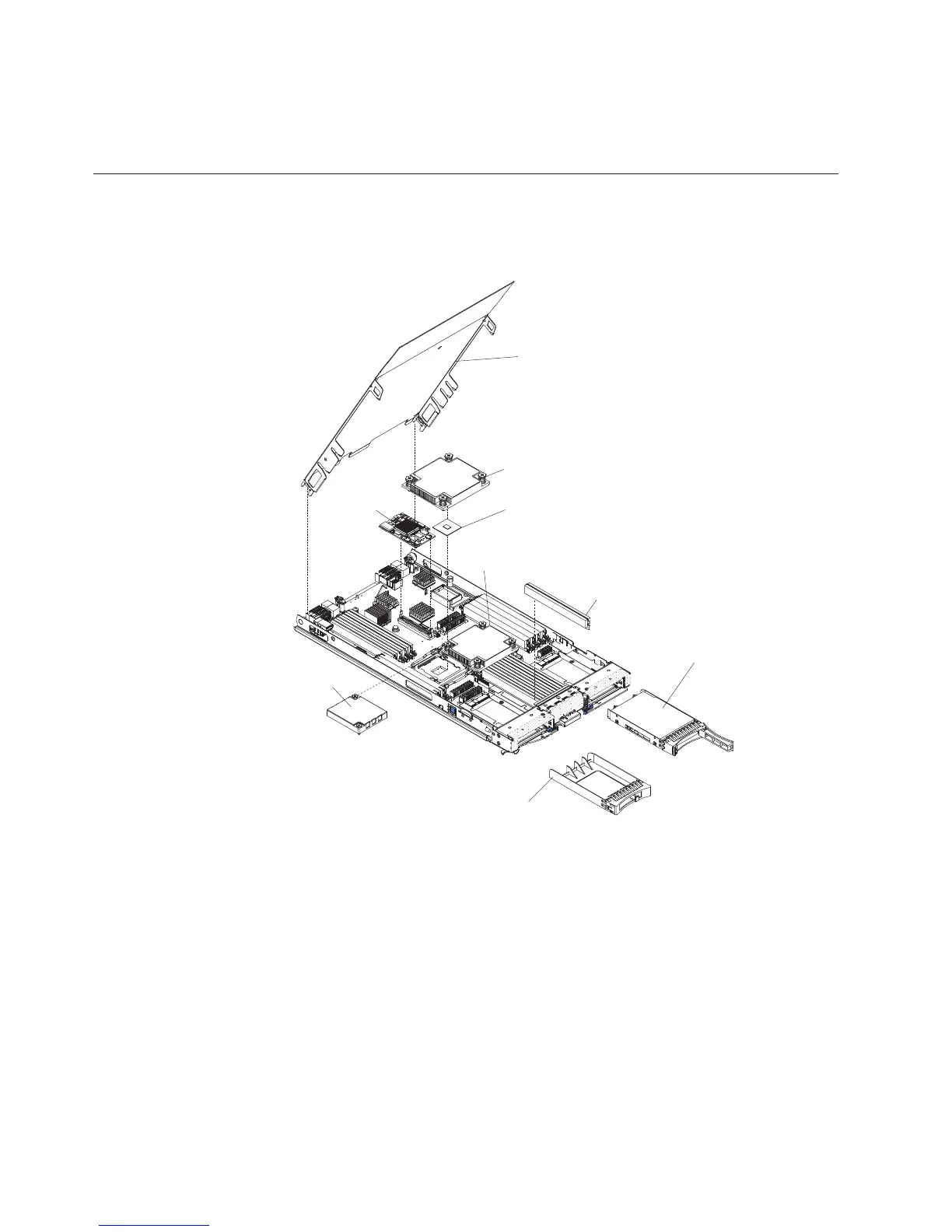

The following illustration shows the major components of the blade server.
Cover
CIOv expansion
card
Microprocessor 1
and heat sink
Microprocessor 2
Heat sink
Microprocessor
heat sink filler
DIMM
Hot-swap
storage drive
Storage drive
filler
