10. Follow the instructions provided with the expansion unit to install an option
in the expansion unit.
11. If you have other devices to install or remove, do so now; otherwise, go to
“Completing the installation” on page 42.
Removing an optional expansion unit
Use these instructions to remove the optional expansion unit from the blade server.

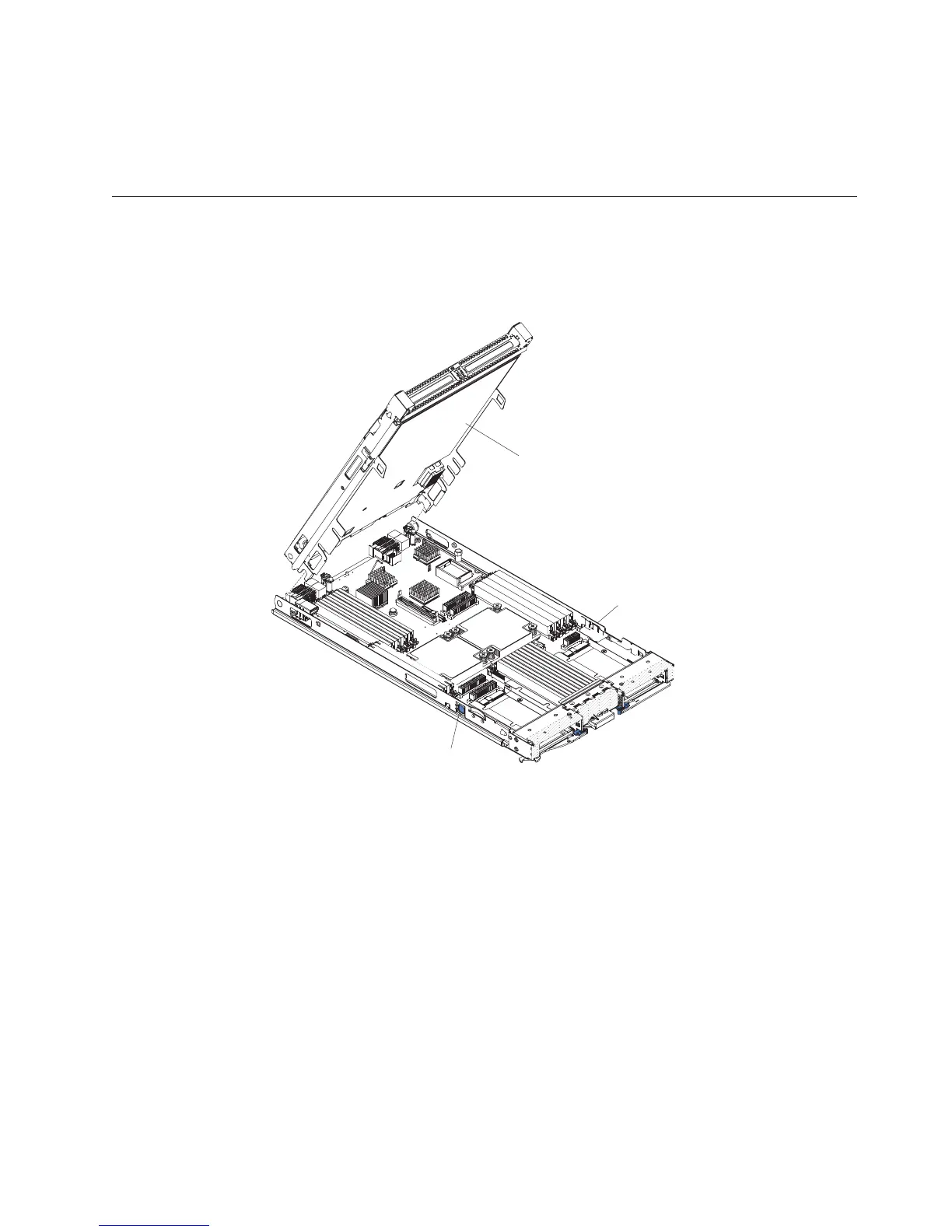

To remove an optional expansion unit, complete the following steps:
Blade server
cover release
Blade server
cover release
Expansion unit
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 17.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 19 for instructions).
3. Carefully lay the blade server on a flat, static-protective surface, with the cover
side up.
4. Remove the blade server cover, if one is installed (see “Removing the blade
server cover” on page 20 for instructions).
5. Remove the expansion unit:
a. If the expansion unit has an extraction device, use the extraction device to
disengage the expansion unit from the blade server. These extraction
devices can be of several types, including thumbscrews or levers. See the
instructions provided with the expansion unit for detailed instructions for
removing the expansion unit.
b. If the expansion unit does not have an extraction device, press the blade
server cover release on each side of the blade server and lift the expansion
unit from the blade server.
Chapter 3. Installing options 23
