surface on any other grounded rack component; then, carefully remove the
microprocessor and the installation tool from the package.

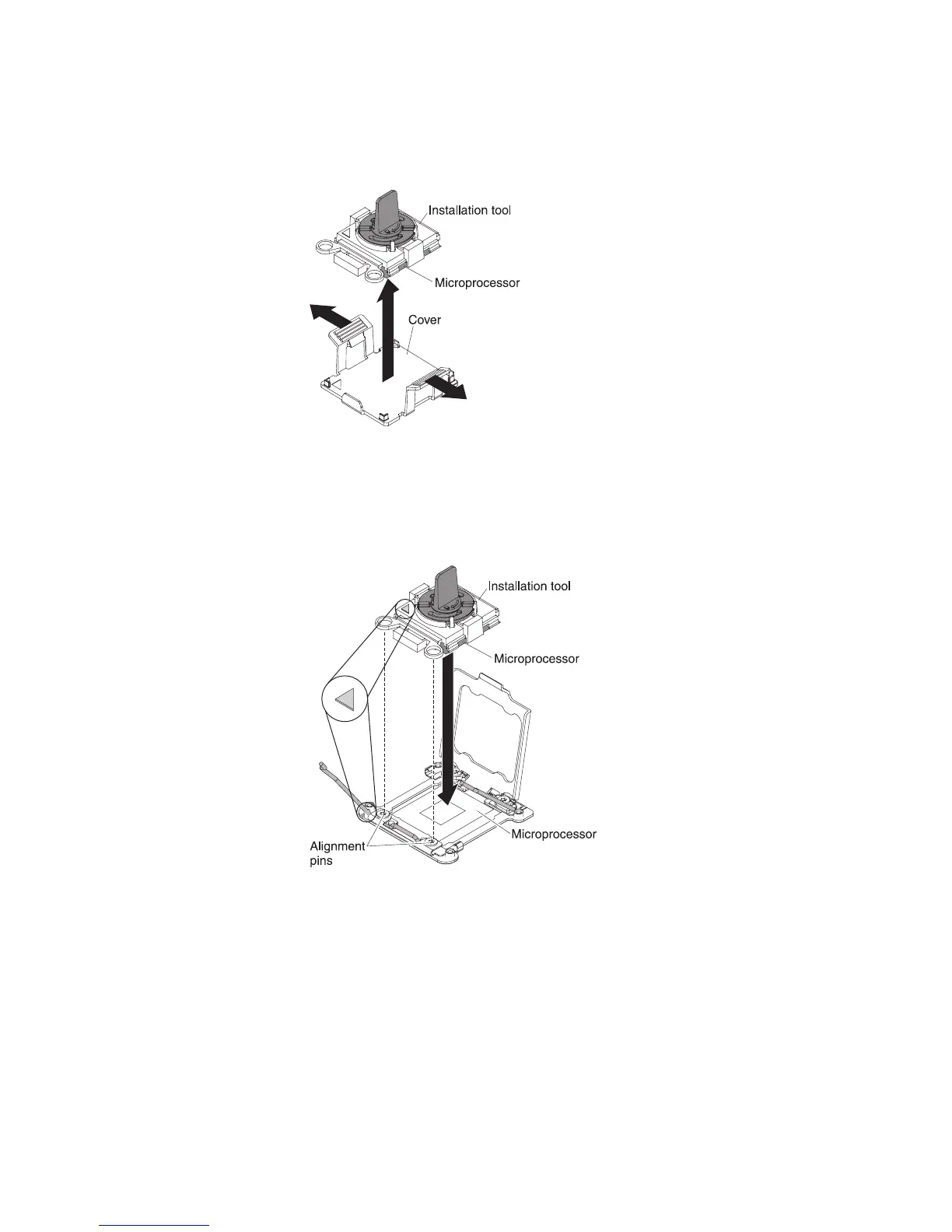

c. Release the sides of the cover and remove the cover from the installation
tool. The microprocessor is preinstalled on the installation tool.
Note: Do not touch the microprocessor contacts. Contaminants on the
microprocessor contacts, such as oil from your skin, can cause connection
failures between the contacts and the socket.
d. Align the installation tool with the microprocessor socket. The installation
tool rests flush on the socket only if properly aligned.
e. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket. The microprocessor is keyed to ensure that
the microprocessor is installed correctly. The microprocessor rests flush on
the socket only if properly installed.
32 BladeCenter HS23 Types 7875 and 1929: Installation and User's Guide
