Expansion
card
To remove a CIOv expansion card, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 17.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 19 for instructions).
3. Carefully lay the blade server on a flat, static-protective surface.
4. Open the blade server cover (see “Removing the blade server cover” on page
20 for instructions).
5. Touch the static-protective package that contains the expansion card to any
unpainted metal surface on the BladeCenter unit or any unpainted metal surface
on any other grounded rack component; then, remove the expansion card from
the package.
6. Locate the CIOv expansion connector (see “Blade server connectors” on page
15).

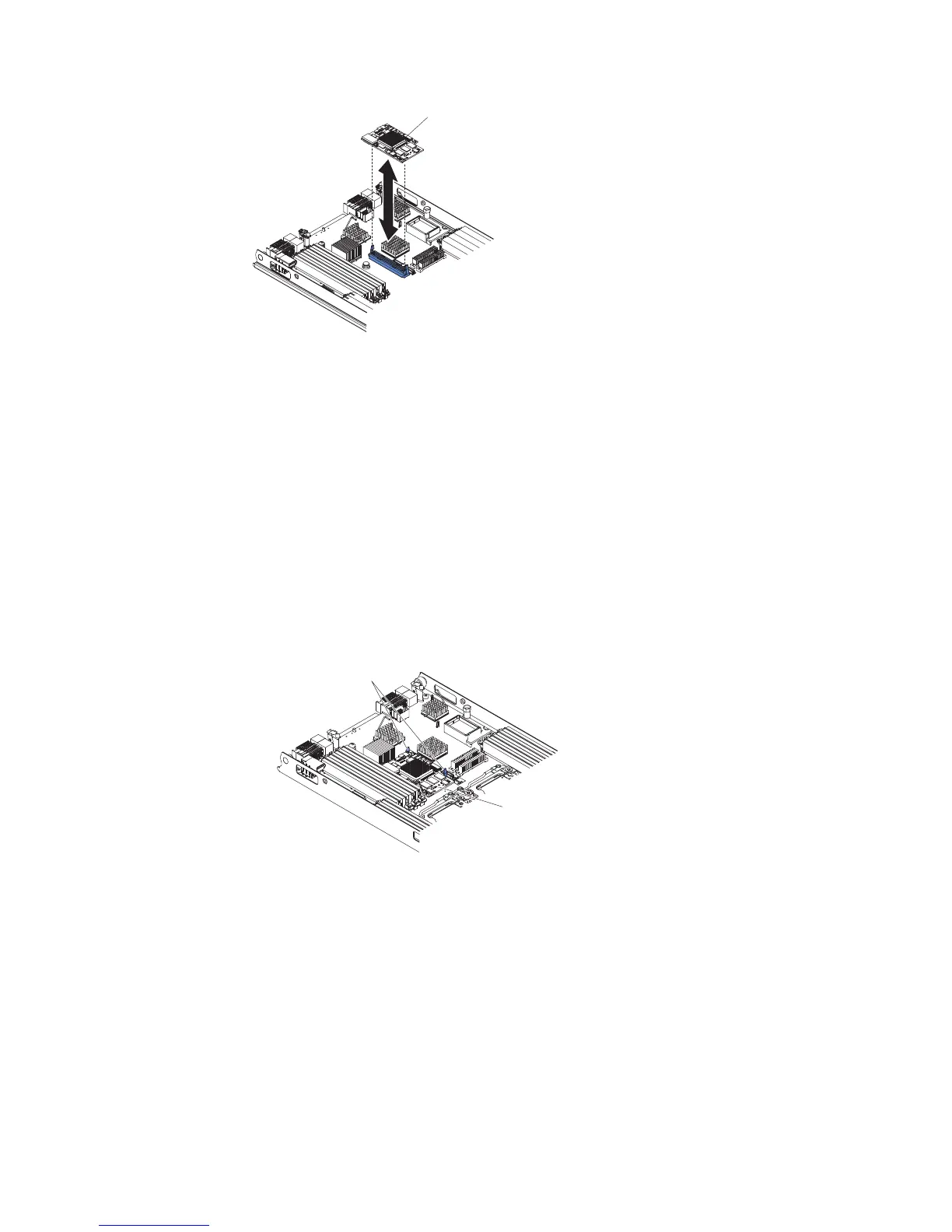

Retaining
clips
Expansion
card
7. Using your fingers, move the retaining clips away from the CIOv card; then, lift
the card vertically out of the connector.
40 BladeCenter HS23 Types 7875 and 1929: Installation and User's Guide
