IBM Flex System x440 Compute Node User Manual

System-board LEDs

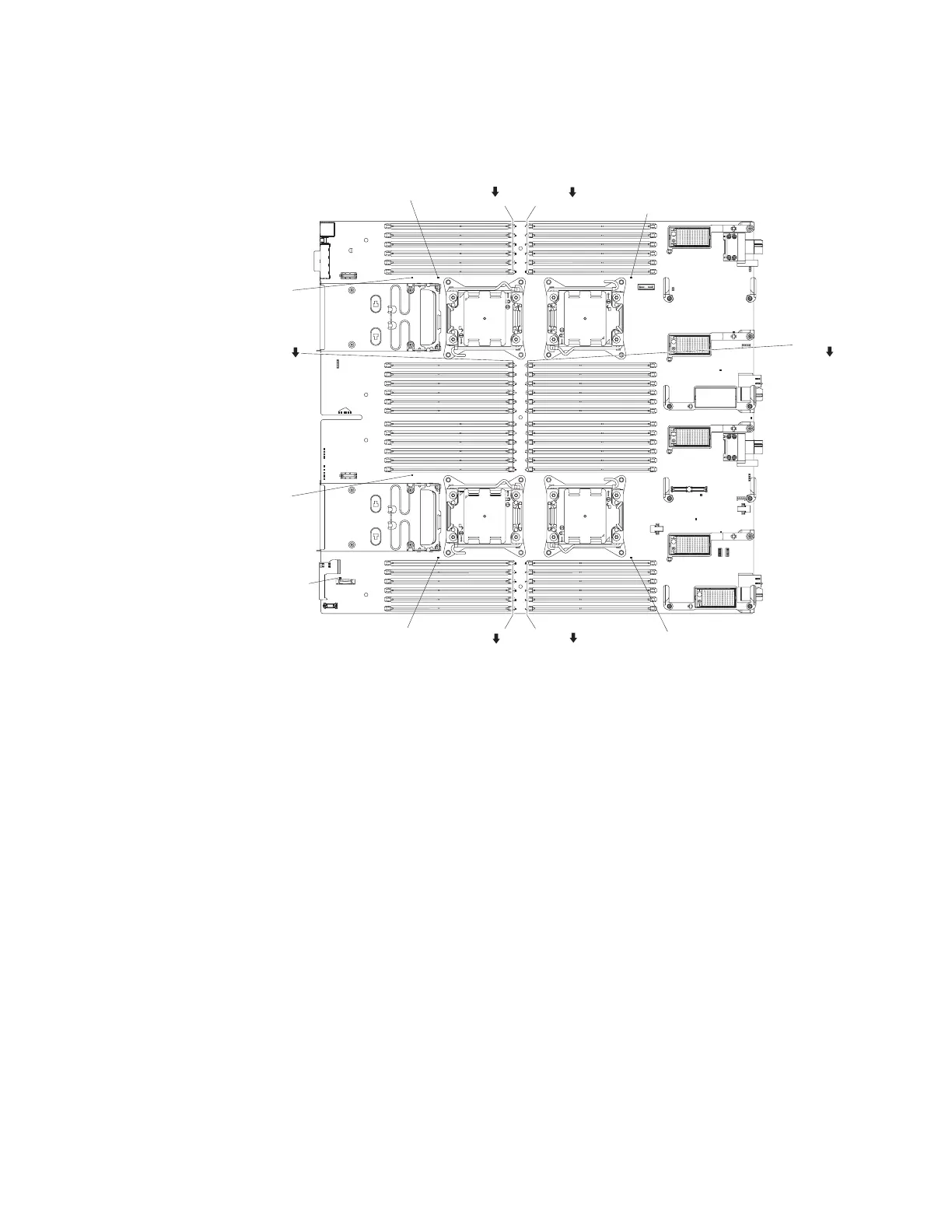

The following illustration shows the location of the LEDs on the system board.
1
6
25
30
7
18
19
24
DIMM
error
43
48
31
42
DIMM
error
DIMM
error
DIMM
error
DIMM
error
DIMM
error
Microprocessor 3
error
Microprocessor 4
error
Microprocessor 2
error
Microprocessor 1
error
Battery
error
Storage
backplane 1
error
Storage
backplane 2
error
System-board switches
Use this information to locate the system-board switches.
The following illustration shows the location of the switch block on the system
board.
18 IBM Flex System x440 Compute Node Types 7917 and 2584: Installation and Service Guide
