Procedure
To remove the adapter-retention assembly, complete the following steps.

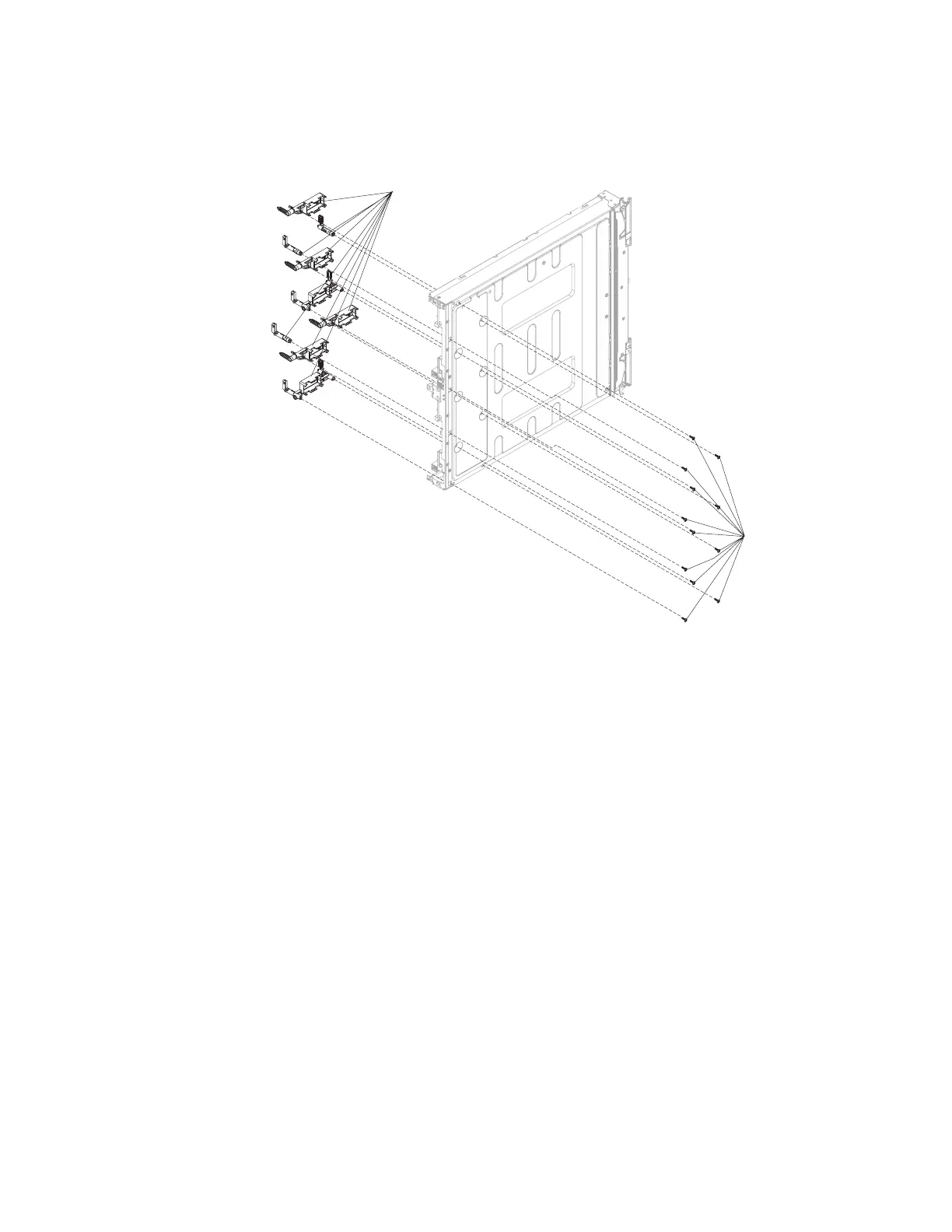

Screws
Adapter retention
assemblies
1. Remove the cover (see “Removing the compute node cover” on page 498).
2. Remove the air baffles.
3. If necessary, remove the I/O expansion adapters (see “Removing an I/O
expansion adapter” on page 524).
4. Carefully place the chassis on its side with the front handle side up.
5. Using a T9 Torx screwdriver, remove the three screws that secure the
adapter-retention assembly.
6. Lift the adapter-retention assembly from the system board.
7. Carefully return the chassis to the bottom-side-down orientation.
What to do next
If you are instructed to return the adapter-retention assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing the adapter-retention assembly
Use this information to install the adapter-retention assembly.
Before you begin
Before you install the adapter-retention assembly, complete the following steps:
1. Read “Safety” on page v and “Installation guidelines” on page 487.
2. If the compute node is installed in an IBM Flex System chassis, remove it (see
“Removing a compute node from a chassis” on page 489 for instructions).
Chapter 7. Installing, removing, and replacing compute node components 493
