4 NetVista™ Technical Information Manual

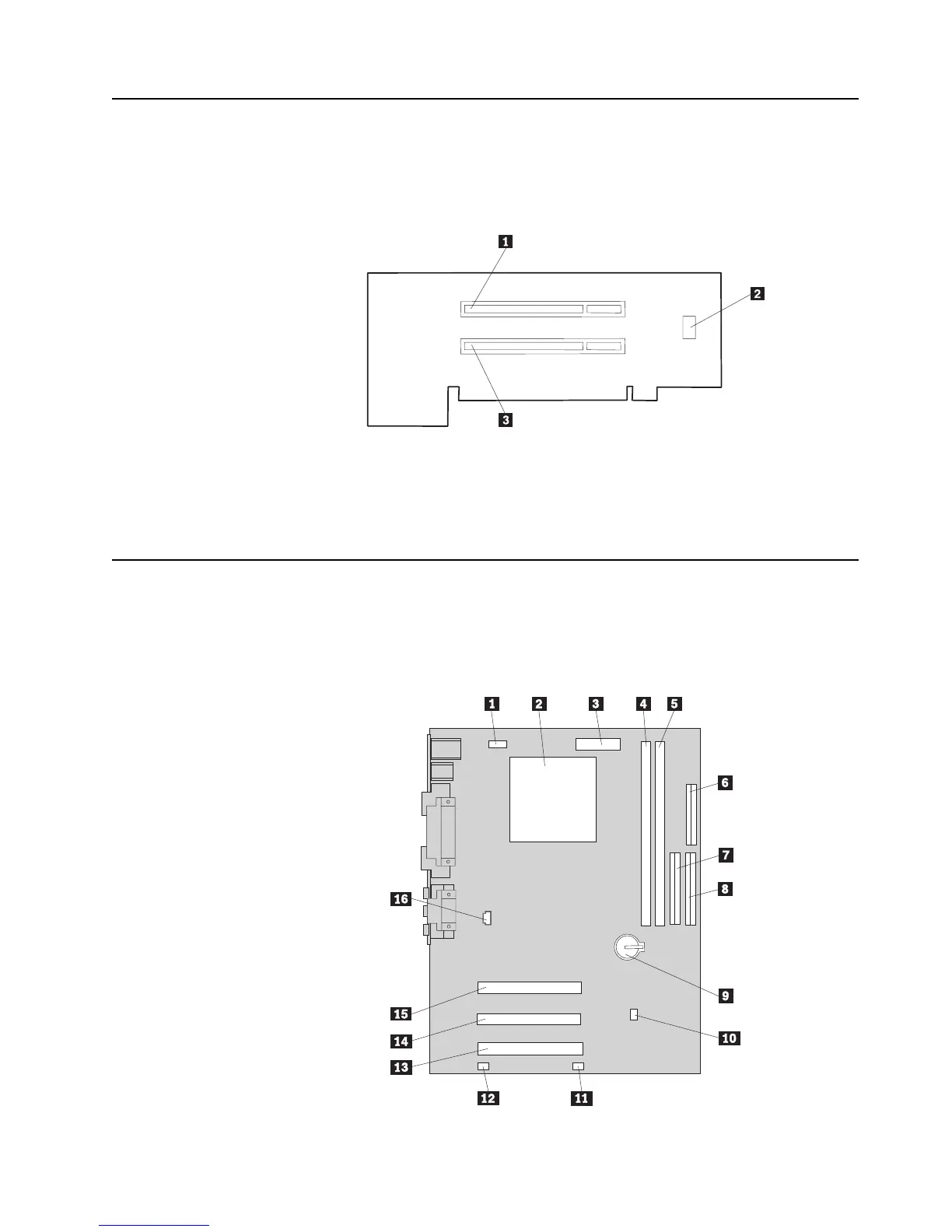

Riser card layout for the small form factor desktop model computer
The riser card might look slightly different from the one shown.
Note: A diagram of the system board, including switch and jumper settings, is
attached to the computer cover.
Þ1Ý PCI connector 1
Þ2Ý Ethernet disable jumper
Þ3Ý PCI connector 2
System board layout for the A20 model computer
The system board might look slightly different from the one shown.
Note: A diagram of the system board, including switch and jumper settings, is
attached to the computer cover.
