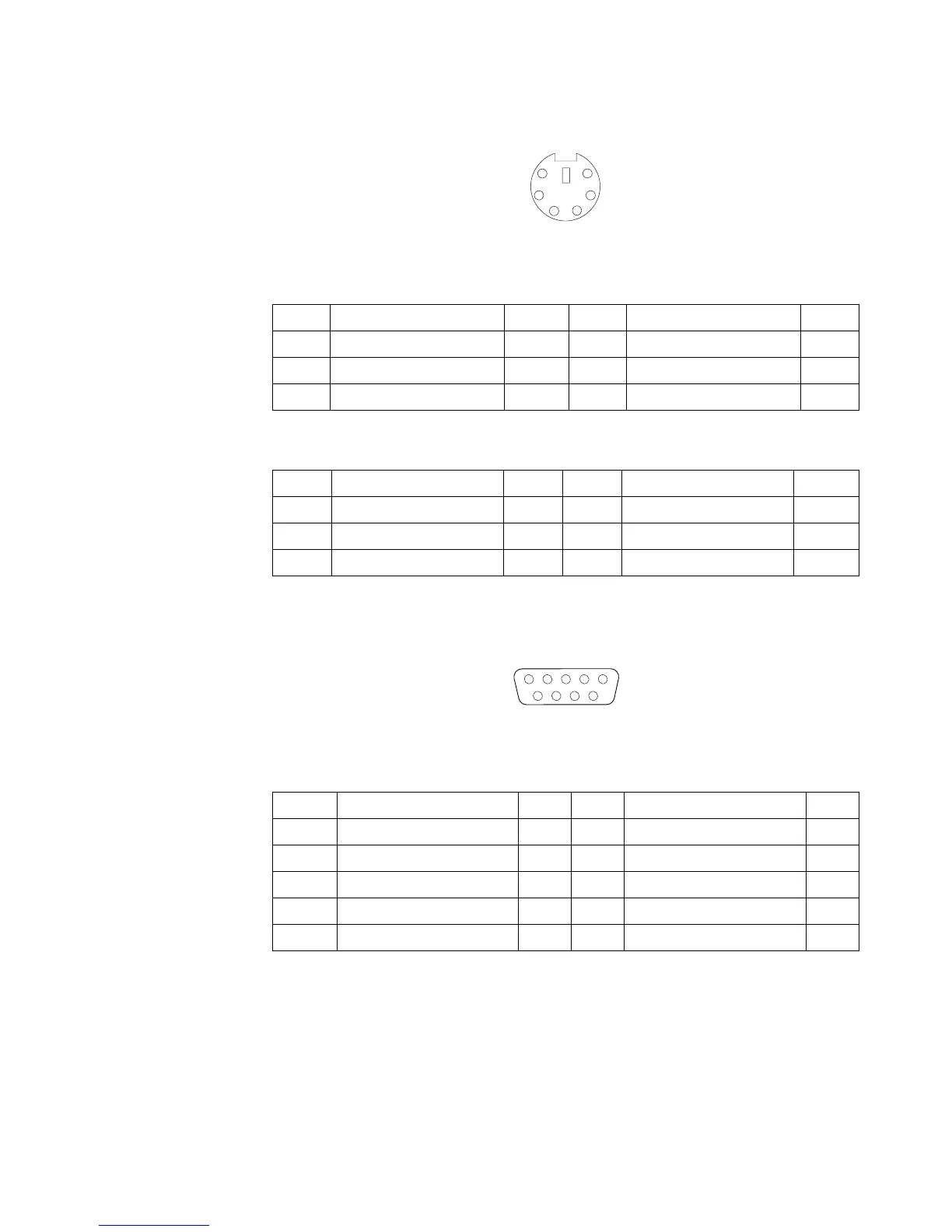

Keyboard and mouse connectors
Serial connector
Table 12. Keyboard connector-pin assignments
Pin Signal I/O Pin Signal I/O
1Data I/O4+5 V dc
2 Reserved I/O 5 Clock I/O
3 Ground 6 Reserved I/O
Table 13. Mouse connector-pin assignments
Pin Signal I/O Pin Signal I/O
1Data I/O4+5 V dc
2 Reserved I/O 5 Clock I/O
3 Ground 6 Reserved
6
4
2
1
3
5
Table 14. Serial connector-pin assignments
Pin Signal I/O Pin Signal I/O
1 Data carrier detect I 6 Data set ready I
2 Receive data# I 7 Request to send O
3 Transmit data# O 8 Clear to send I
4 Data terminal read O 9 Ring indicator I
5 Ground
1
5
69

IBM NetVista Specifications

General

Category	Desktop
Model	NetVista
Processor Type	Intel Celeron
Memory Type	SDRAM
Optical Drive	CD-ROM, DVD-ROM, or CD-RW
Graphics	Integrated Intel graphics
Audio	Integrated audio
Network	10/100 Ethernet
Operating System	Windows 2000, Windows XP (Varies by model)
Expansion Slots	PCI
Ports	USB, serial, parallel, VGA, audio in/out
