Required Equipment
You need the following equipment for this installation:
• Number 2 Phillips screwdriver
• Tape measure and level (to ensure that shelf brackets are at level with each other)
Installing the Shelf Bracket Kit into a Two-Post Telco Rack
About this task

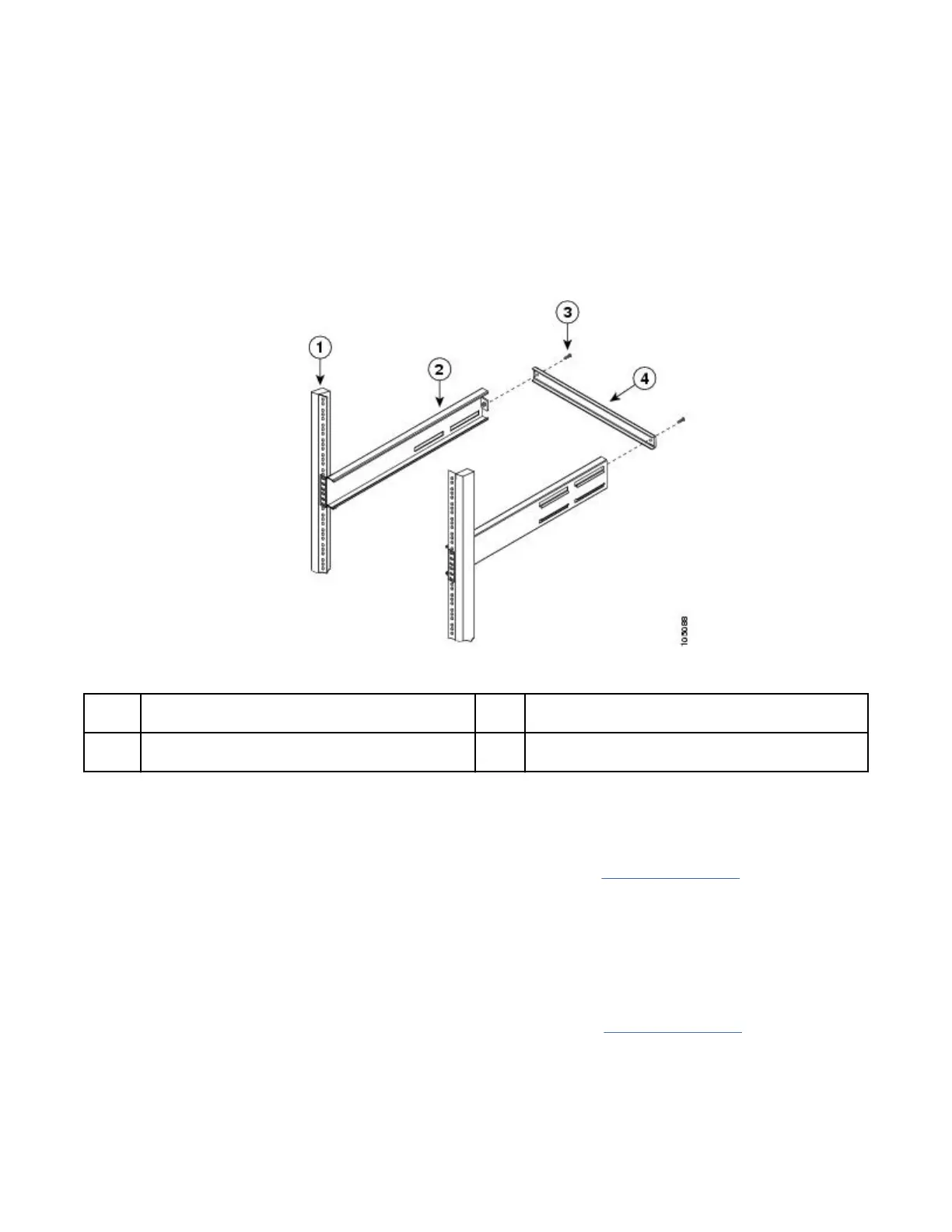

The following gure shows the installation of the shelf bracket kit into a two-post Telco rack:
Figure 6. Installing the Shelf Bracket Kit into a Telco Rack
1
Rack-mounting post 3 10-32 screws
2 Shelf bracket 4 Crossbar
To install the shelf brackets in a Telco rack, follow these steps:
Procedure
1. Position a shelf bracket inside a rack-mounting post as shown in Figure 6 on page 12
and align the
screw holes at the front of the shelf bracket with the holes in the rack-mounting post. Then, attach the
shelf bracket to the rack-mounting post using a minimum of four 12-24 or 10-24 screws.
Note: The bottom hole of the shelf bracket should align with the bottom hole (the hole immediately
above the 1/2 in. spacing) of a rack unit on the rack-mounting post.
2. Repeat Step 1 with the other shelf brackets.
3. Verify that the shelf brackets are at the same height (using the level or tape measure, as desired).
4. Attach the crossbar to the rear of the shelf brackets, as shown in Figure 6 on page 12, using the 10-32
screws.
12
IBM Storage Networking: IBM Storage Networking SAN48C-6 32 Gbps 48-Port Fibre Channel Switch
Installation, Service, and User Guide
