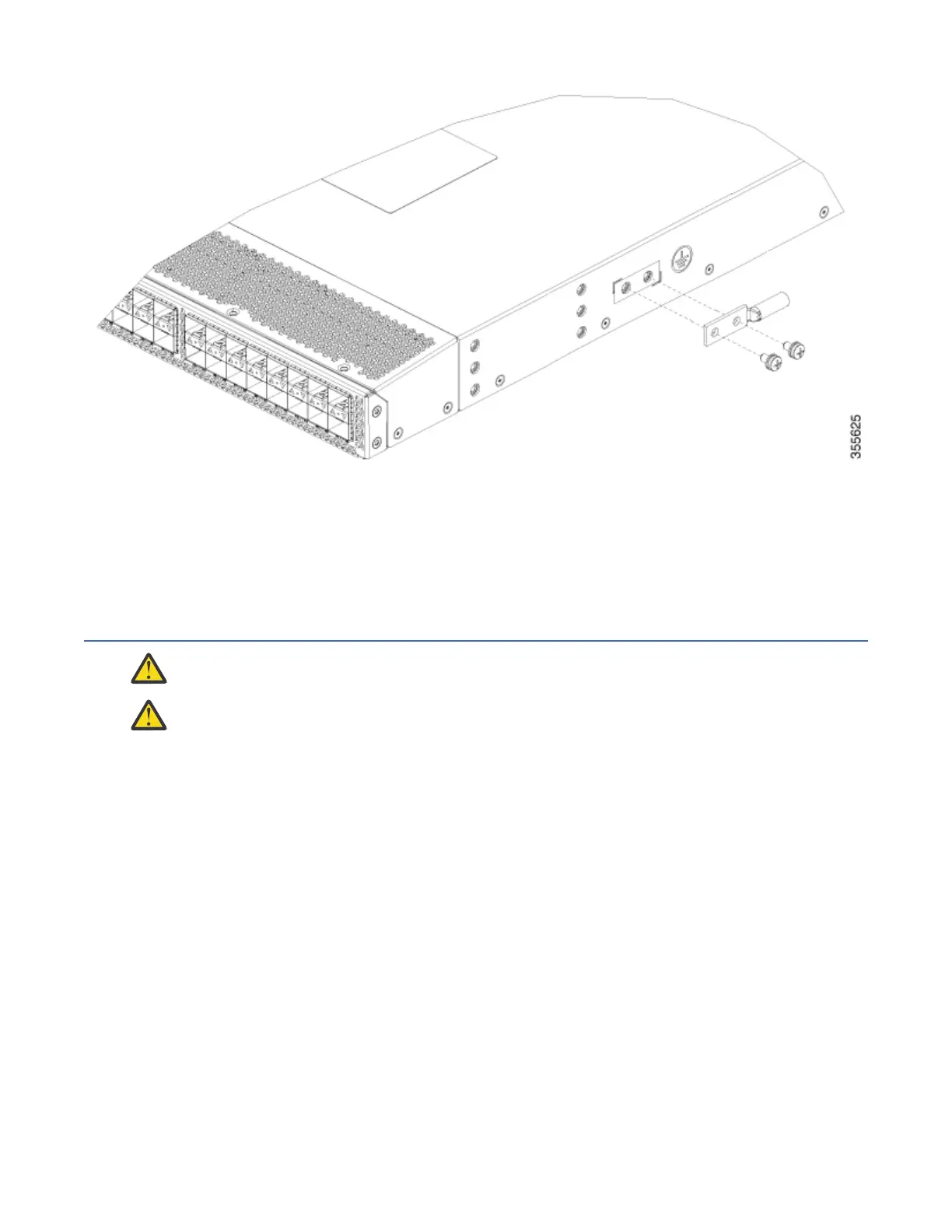

Figure 14. Grounding the Switch
4. Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your
site to ensure an adequate earth ground for the switch. If the rack is fully bonded and grounded,
connect the grounding wire, as explained in the documentation provided by the vendor from whom you
bought the rack.
Installing and Removing Components
Warning:
Hazardous voltage or energy is present on the backplane when the system is operating.
Use caution when servicing. Statement 1034
CAUTION: During this procedure, wear grounding wrist straps to avoid ESD damage to the switch.
Installing the ESD Grounding Strap
This section illustrates how to prepare yourself before removing the chassis from the sealed antistatic
bag.
The gures show how to cuff the ESD strap around the wrist and the ground cord that connects the cuff to
the ground. ESD wrist straps are the primary means of controlling static charge on personnel.
Note: These images are for only representation purposes. The chassis' actual appearance and size may
vary.
Chapter 3. Installing the IBM SAN48C-6 Switch
25
