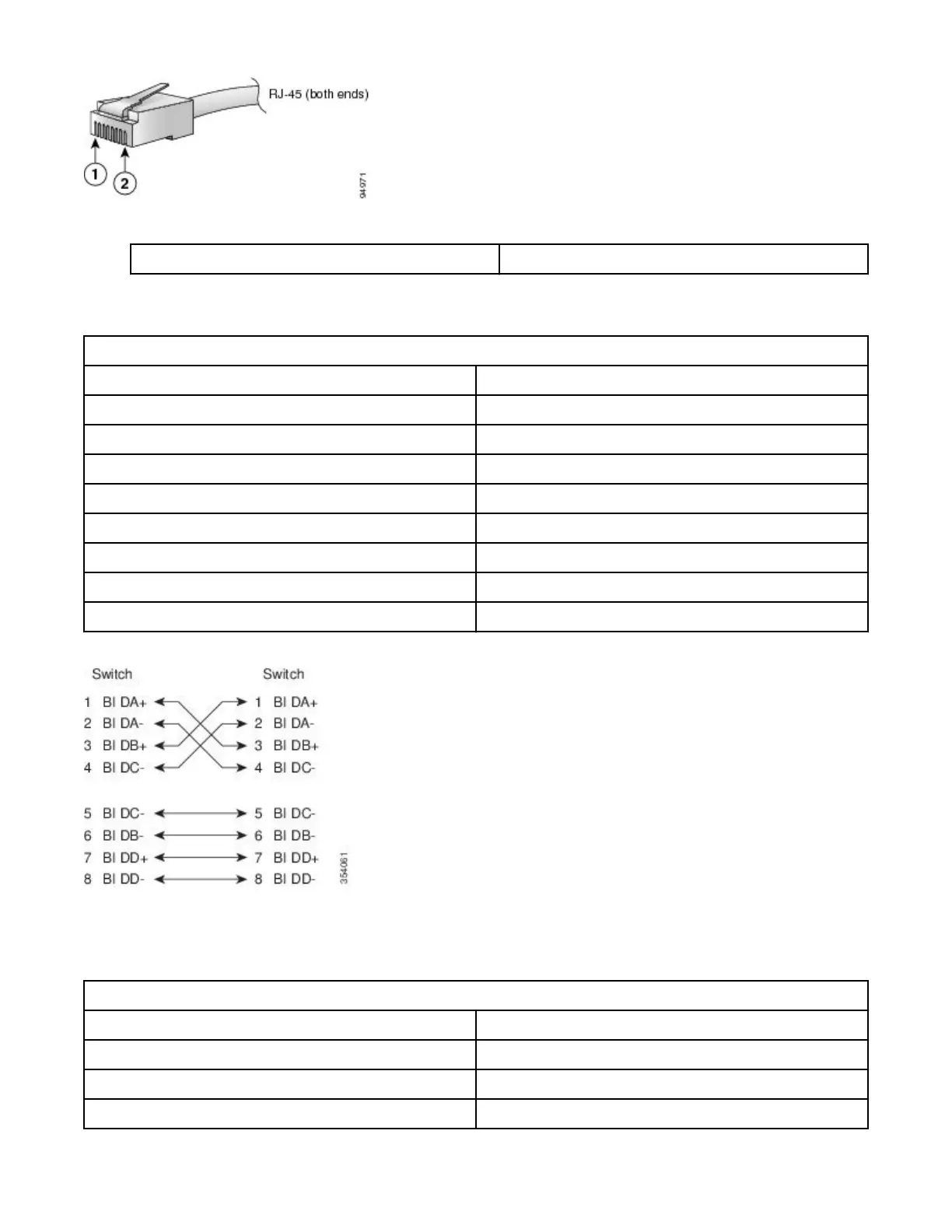

Figure 18. RJ-45 Interface Cable Connector
1. Pin 1 2. Pin 8
The following table lists the connector pinouts and signal names for a 10/100/1000BASE-T management
port (MDI) cable.
Table 21. 10/100/1000 BASE-T Management Port Cable Pinout
Pin Signal
1 BI DA+
2 BI DA-
3 BI DB+
4 BI DC+
5 BI DC-
6 BI DB-
7 BI DD+
8 BI DD-
The following gure shows a schematic representation of the 10/100/1000 BASE-T cable:
Figure 19. Twisted-Pair 10/100/1000 BASE-T Cable
The following table lists the connector pinouts and signal names for a 10/100 BASE-T management port
(MDI) cable:
Table 22. 10/100 BASE-T Management Port Cable Pinout
Pin Signal
1 TD+
2 TD-
3 RD+
48 IBM Storage Networking: IBM Storage Networking SAN48C-6 32 Gbps 48-Port Fibre Channel Switch
Installation, Service, and User Guide
