IBM Selectric Reference Manual

II
10
9
6
20
7
3
8
A
4
12
o
13
17

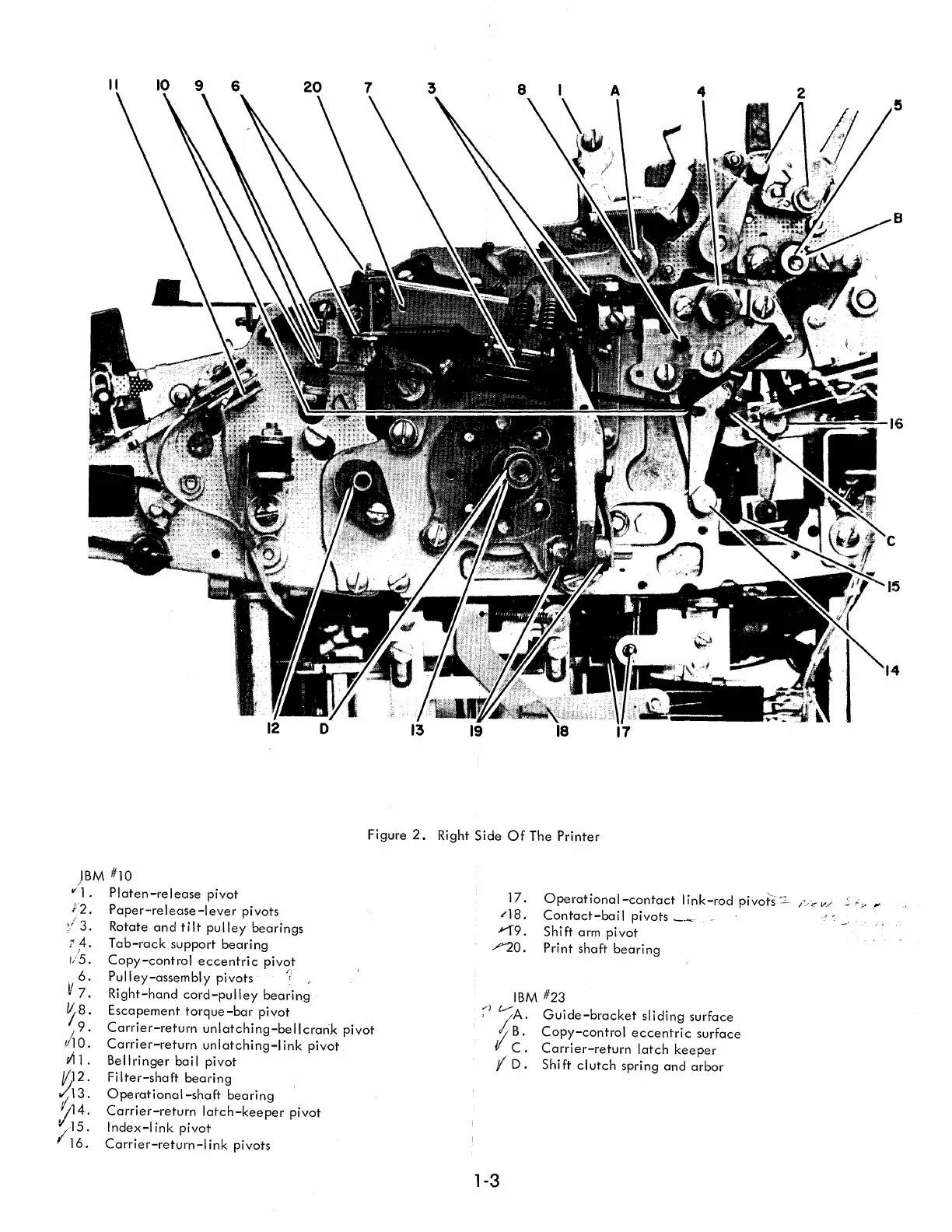

Figure 2. Right Side Of The Printer
)BM #10
"'1.
r2.
,:/3.
74.
,/5.
6.
V 7.
~B.
/9.
v'10.
1I1l.
V}2.
.(13.
/14.
i
15
.
16.
Platen-release pivot
Paper-release-lever pivots
Rotate and tilt pulley bearings
Tab-rack support bearing
Copy-control eccentric pivot
Pulley-assembly pivots '~'
Right-hand cord-pulley bearing
Escapement torque -bar pivot
Carrier-return unlatching-bellcrank pivot
Carrier-return unlatching-I ink pivot
Bellringer bail pivot
Fi Iter-shaft bearing
Operational-shaft bearing
Carrier-return latch-keeper pivot
Index-I ink pivot
Carrier-return-I ink pivots
17.
/lB.
Yf9.
/'LO.
Operational-contact I ink-rod pivots ~2..
Contact-bai I pivots ___
S h i ft arm pivot
Print shaft bearing
IBM #23
~) V;A.
lB.
C.
tI D.
1-3
Guide-bracket sliding surface
Copy-control eccentric surface
Carrier-return latch keeper
Shift clutch spring and arbor
2
B
16
15
14

IBM Selectric Specifications

General

Type	Electric typewriter
Introduced	1961
Keyboard Layout	QWERTY
Carriage Return	Electric
Manufacturer	IBM
Printing Technology	Typeball (golf ball)
Power Source	AC Power
Power Supply	120V AC
