IBM Selectric Reference Manual

llBM #10
1. Platen-release pivot
Y .. 2. Copy-control eccentric pivot
I; 3 . T ab-rac k support bush i ng
Ii, 4. Rotate and ti It pulley beari ngs
,} 5. Print-shaft bearing
y 6. Left-hand margin-rack bushi ng
f7. Tilt-arm pivot
vB. Idler-gear bearings (lightly)
1/ 9. F,ilter-shaft bearing
1110. End-of-line bail
.V 11. Tab set / clear 1 ink pivots
'\ 12. Wear-compensator pivots
V 13. Cycle-shaft bearing

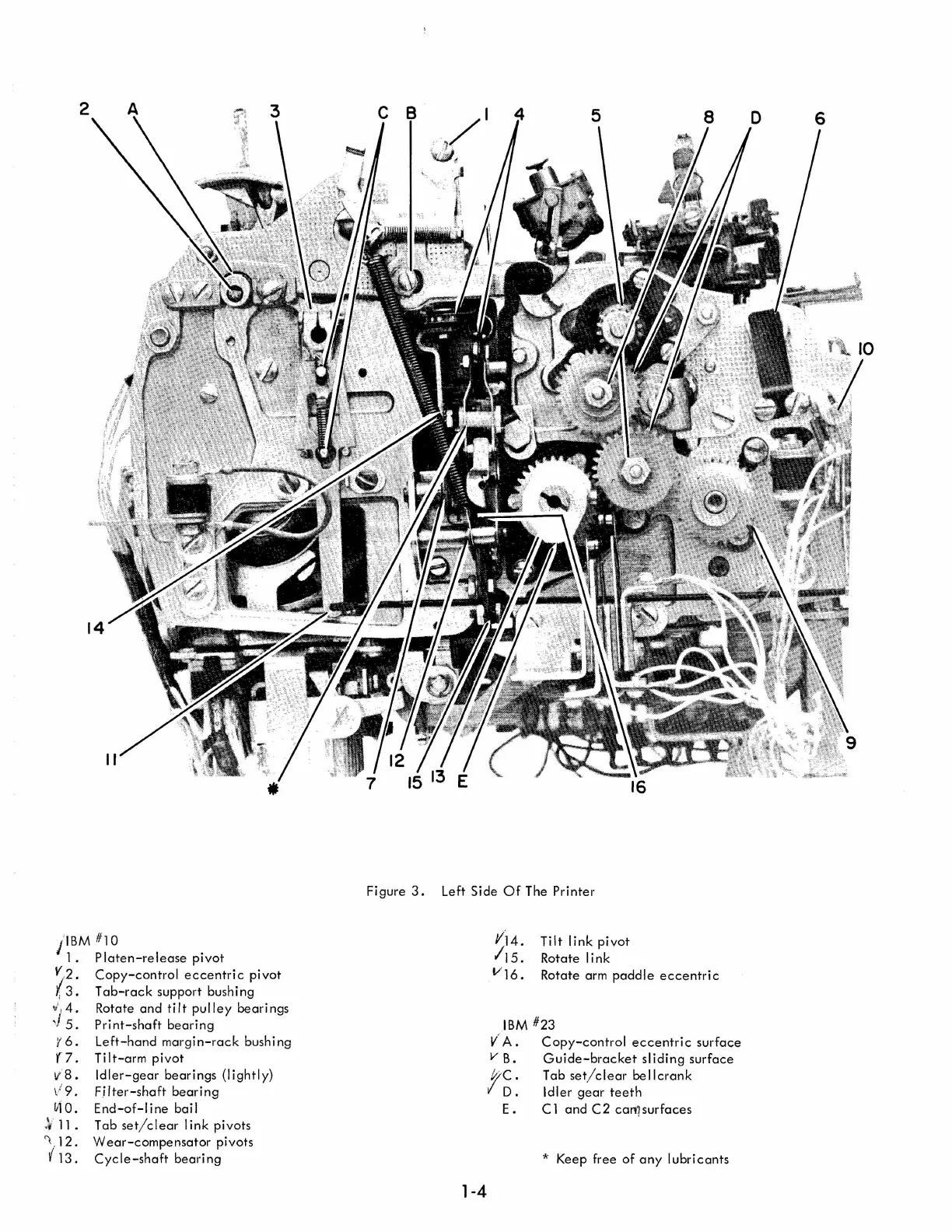

Figure 3.
Left Side Of The Printer
1-4
Jli 4. Ti It I ink pivot
/15. Rotate link
V16. Rotate arm paddle eccentric
IBM #23
V' A. Copy-control eccentric surface
VB. Guide-bracket sl iding surface
IfC. Tab set/clear bellcrank
v D. Idler gear teeth
E. C 1 and C2 can 1 surfaces
* Keep free of any lubricants
