IBM Storwize V7000 2076-224 User Manual

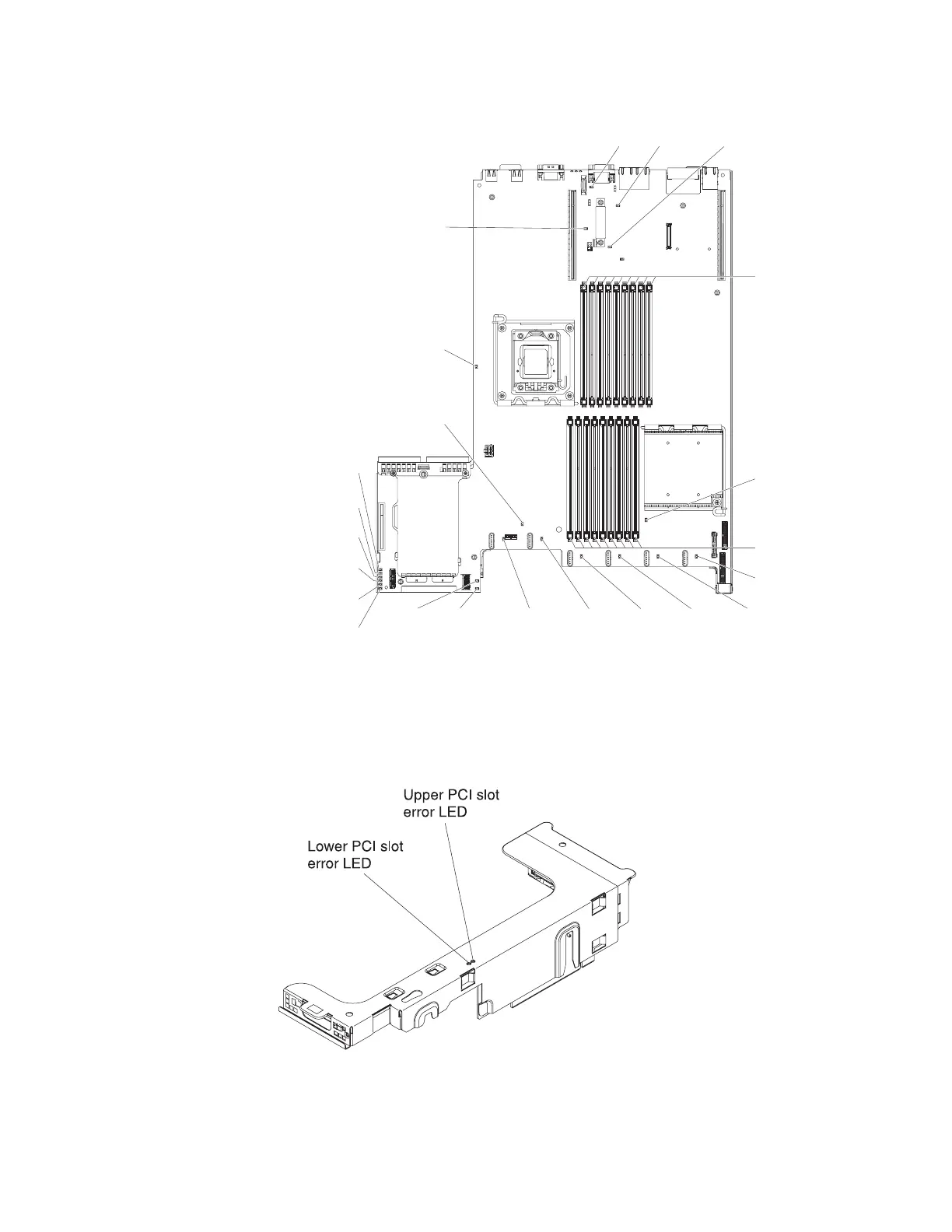

Power channel B
error LED
Power channel C
error LED
Power channel D
error LED
Power channel E
error LED
Power channel A
error LED
AUX power channel
error LED
Fan 3
error LED
Reserved Fan 2
error LED
Reserved Fan 1
error LED
Reserved
240 VA
error LED
SAS RAID
riser-card
missing LED
DIMM 1 - 9
error LEDs
Microprocessor 1
error LED
System board
error LED
Microprocessor 2
error LED
Riser 2
missing LED
Batter
LED
y
IMM
heartbeat
LED
Enclosure
manager
heartbeat LED
DIMM 10 - 18
error LEDs
12v channel error LEDs indicate an overcurrent condition. Refer to the
procedure “Solving power problems” in the “Troubleshooting the System
x3650” in the IBM Storwize V7000 Unified Information Center to identify the
components that are associated with each power channel, and the order in
which to troubleshoot the components.
The following illustration shows the LEDs on the riser card.
4. Check the “Power-supply LEDs” on page 40 for the correct combination of
power LEDs that should be displayed during typical operation.
36 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-224 Specifications

General

Model	2076-224
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Interface	SAS
Connectivity	Fibre Channel, iSCSI
Drive Bays	24
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI
Power Supply	Dual redundant power supplies
Operating Temperature	10°C to 35°C (50°F to 95°F)
Operating Humidity	20% to 80% non-condensing
Non-operating Humidity	10% to 90% non-condensing
