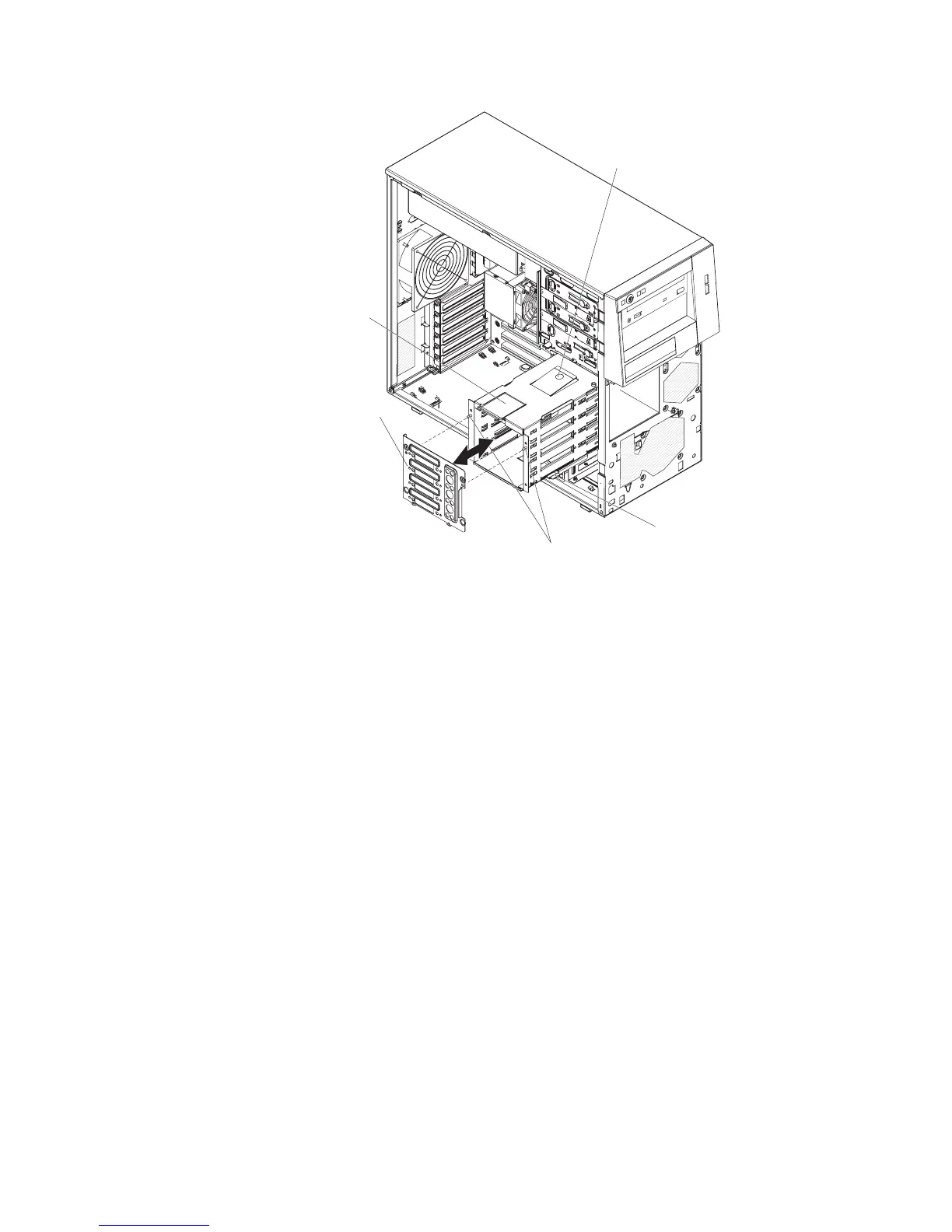

Retaining tab
Drive cage
release tab
Retaining
latch
Locating pins
Simple-swap
backplate
11. Lift the simple-swap backplate out of the lower lip on the drive cage and set it
aside.
12. If you are instructed to return the simple-swap backplate, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Chapter 4. Removing and replacing server components 85
