IBM x3200 M2 Type 4367 User Manual

Removing the hard disk drive fan assembly
This procedure applies only to server models that have a hard disk drive fan
assembly.
Attention:
v Replace a failed fan within 48 hours.
v To ensure proper cooling and airflow, do not operate the server for more than 30
minutes with the side cover removed.
To remove the hard disk drive fan assembly, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 52).
4. Disconnect the hard disk drive fan assembly cable from the system board,
making a note of where the cable was connected for later installation.
5. Remove the hard disk drives.
6. Press and hold the drive cage release tab; then, rotate the drive cage out of the
chassis until the retaining tab on top of the cage locks into place.

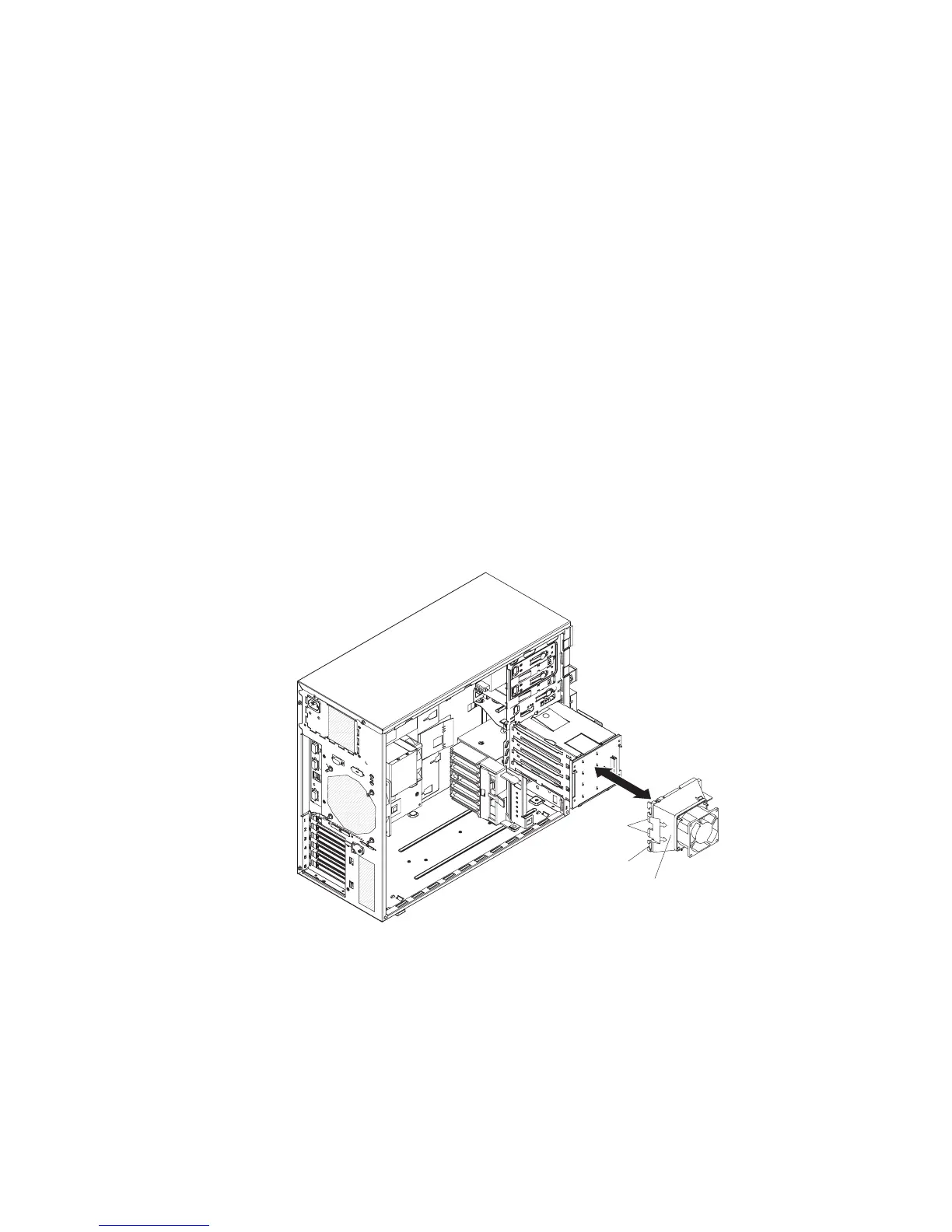

7. Pull out on the hard disk drive fan assembly release tabs; then, rotate the
assembly away from the drive cage slightly.
Release
tabs
Hard disk drive
fan assembly
Slot
If you have the eight-drive, 2.5-inch hot-swap hard disk drive model, the hard
disk drive fan assembly looks like the following illustration.
Chapter 4. Removing and replacing server components 81

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
