IBM x3200 M2 Type 4367 User Manual

Installing a non-hot-swap power supply
This procedure applies only to server models that have a non-hot-swap power
supply. See “Installing a hot-swap power supply” on page 74 for information about
the installation of a hot-swap power supply.
To install a non-hot-swap power supply, complete the following steps:

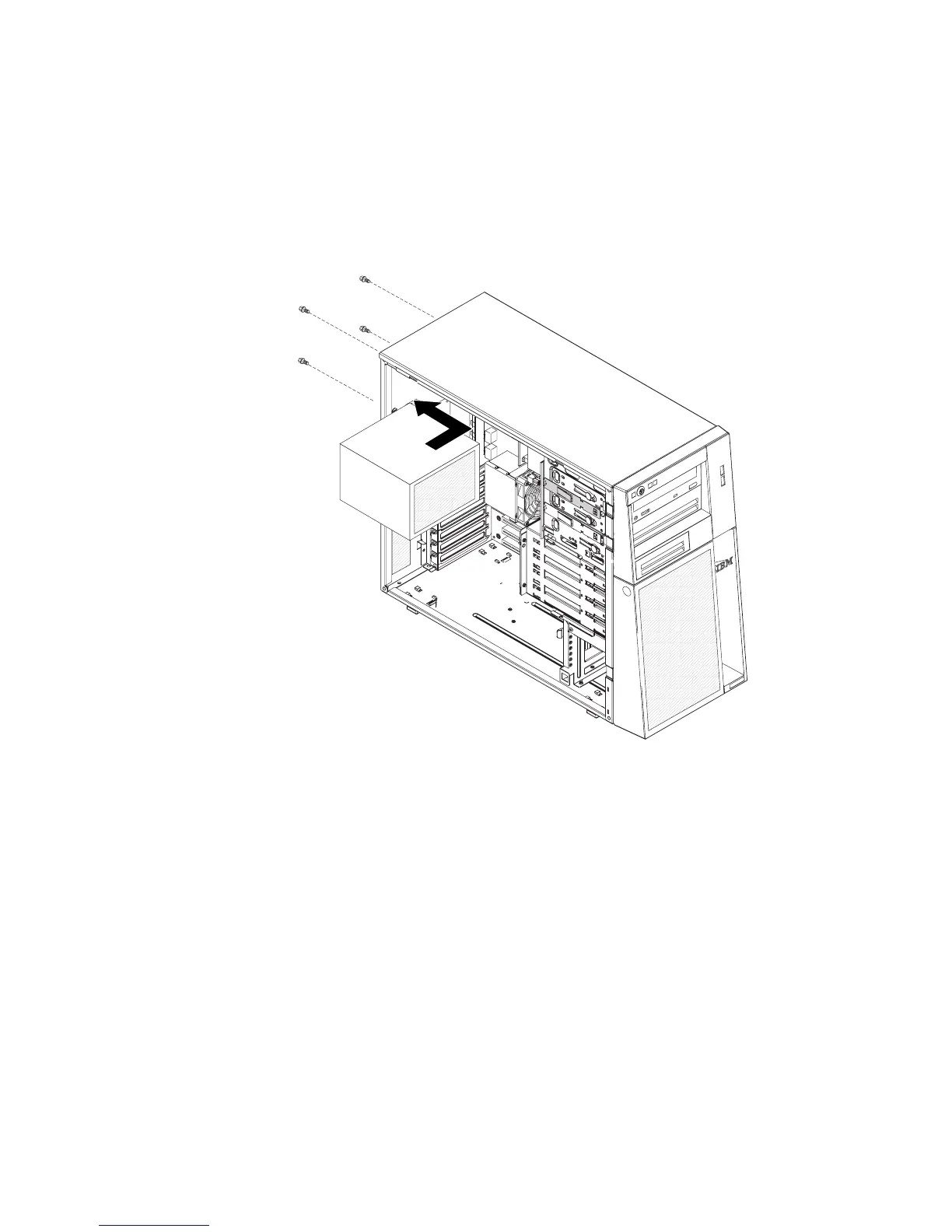

1. Position the power supply in the chassis so that the screw holes in the power
supply are aligned with the corresponding holes in the rear of the chassis.
2. Install the four screws that secure the power supply to the chassis.
3. Power supply connector P2 supports the microprocessor voltage regulator
module. Connect power supply connector P2 to the microprocessor power
connector on the system board, see Figure 1 on page 108.
Attention: Do not connect power supply connector P11 to the microprocessor
power connector on the system board. Power supply connector P11 supports
PCI video and connects to the video adapter.
Chapter 4. Removing and replacing server components 107

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
