4. Connect the remaining cables from the power supply to the system board and
all internal components.
5. Install the side cover (see “Installing the side cover” on page 53).
6. Lock the side cover if you unlocked it during removal.
7. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.

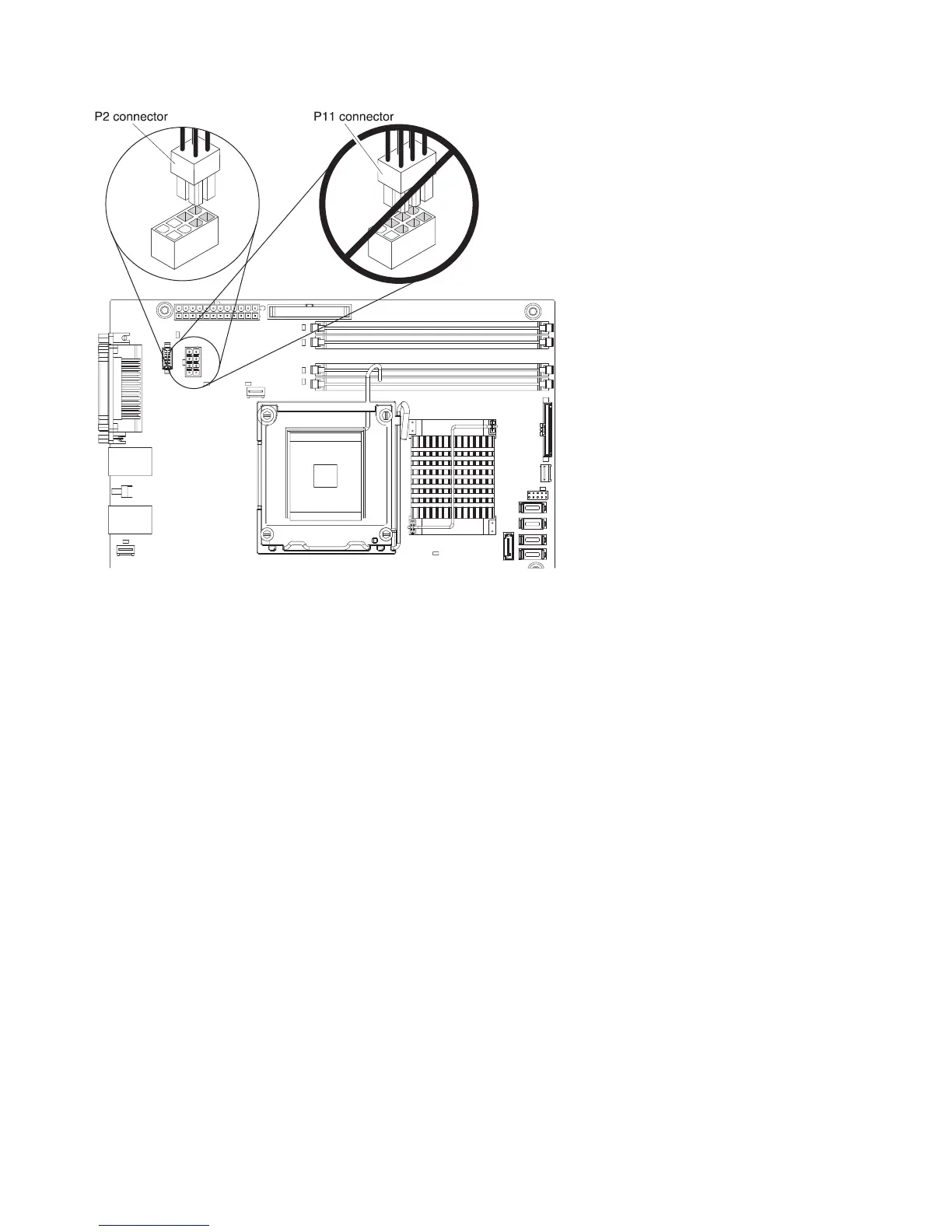

Figure 1. Connectors P2 and P11
108 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
