IBM x3200 M2 Type 4367 User Manual

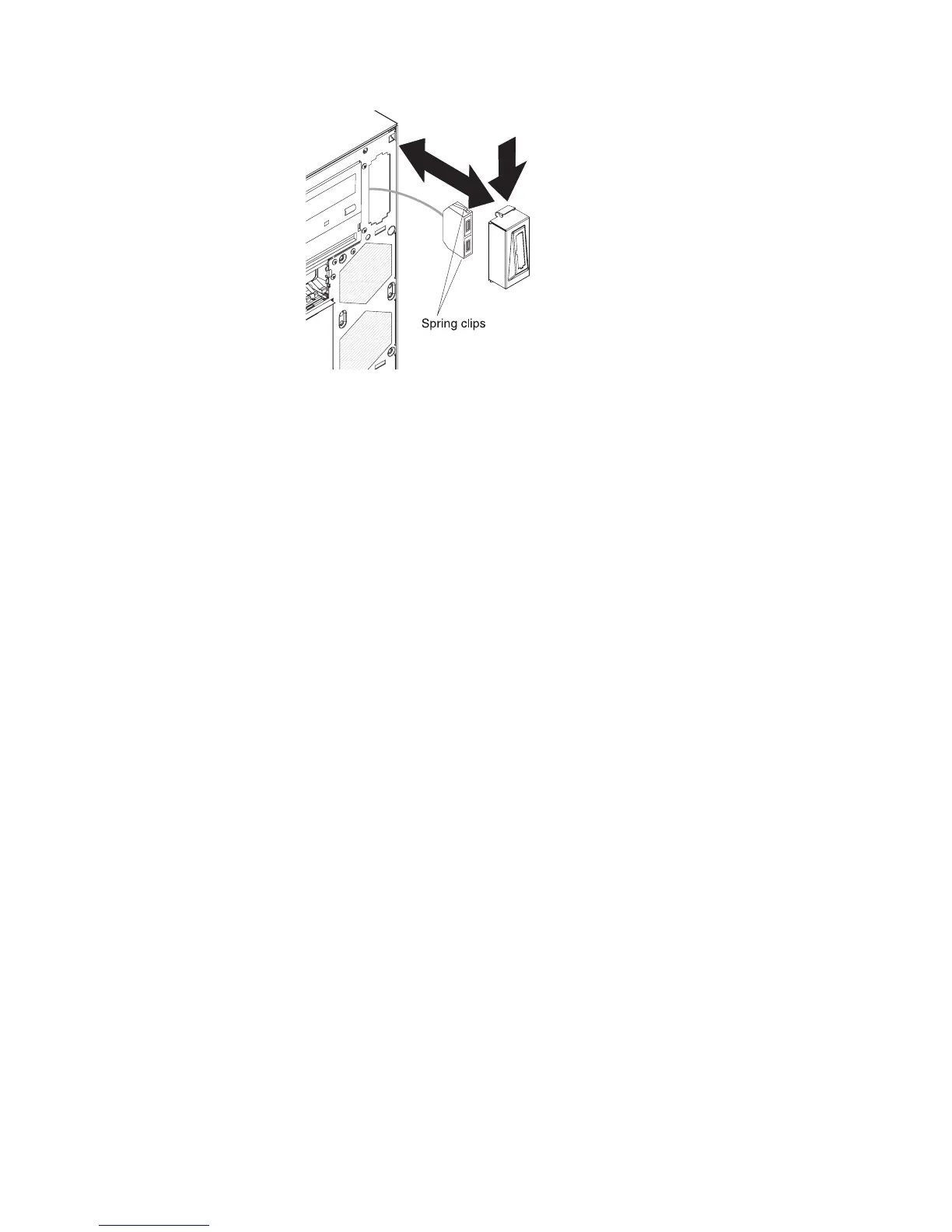

8. Squeeze the spring clips on the sides of the front USB connector assembly
and pull the assembly out of the back of the housing.
9. Carefully pull the front USB cable out of the opening in the chassis.
10. If you are instructed to return the front USB connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Removing the rear adapter retention bracket
To remove the rear adapter-retention bracket, complete the following steps:
1. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
2. Unlock and remove the side cover (see “Removing the side cover” on page 52).
3. Remove all adapters (if necessary) and place the adapters on static-protective
surface.
Note: You might find it helpful to note where each adapter is installed before
you remove the adapters.
4. Release the rear adapter-retention bracket by lifting up on the rear
adapter-retention bracket, and rotate the bracket partially toward the closed
position.
5. Grasp the bracket on one side at the hinge point and pull outward (while you
rotate the bracket slightly toward the front of the server) until the bracket is free
of the hinge pin; then, grasp the bracket on the other side at the hinge point,
pull outward until the bracket is free of the hinge pin, and remove the rear
adapter-retention bracket from the server.
Chapter 4. Removing and replacing server components 91

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
