IBM x3200 M2 Type 4367 User Manual

Server controls, LEDs, and power
This section describes the controls and light-emitting diodes (LEDs) and how to turn
the server on and off.
Front view

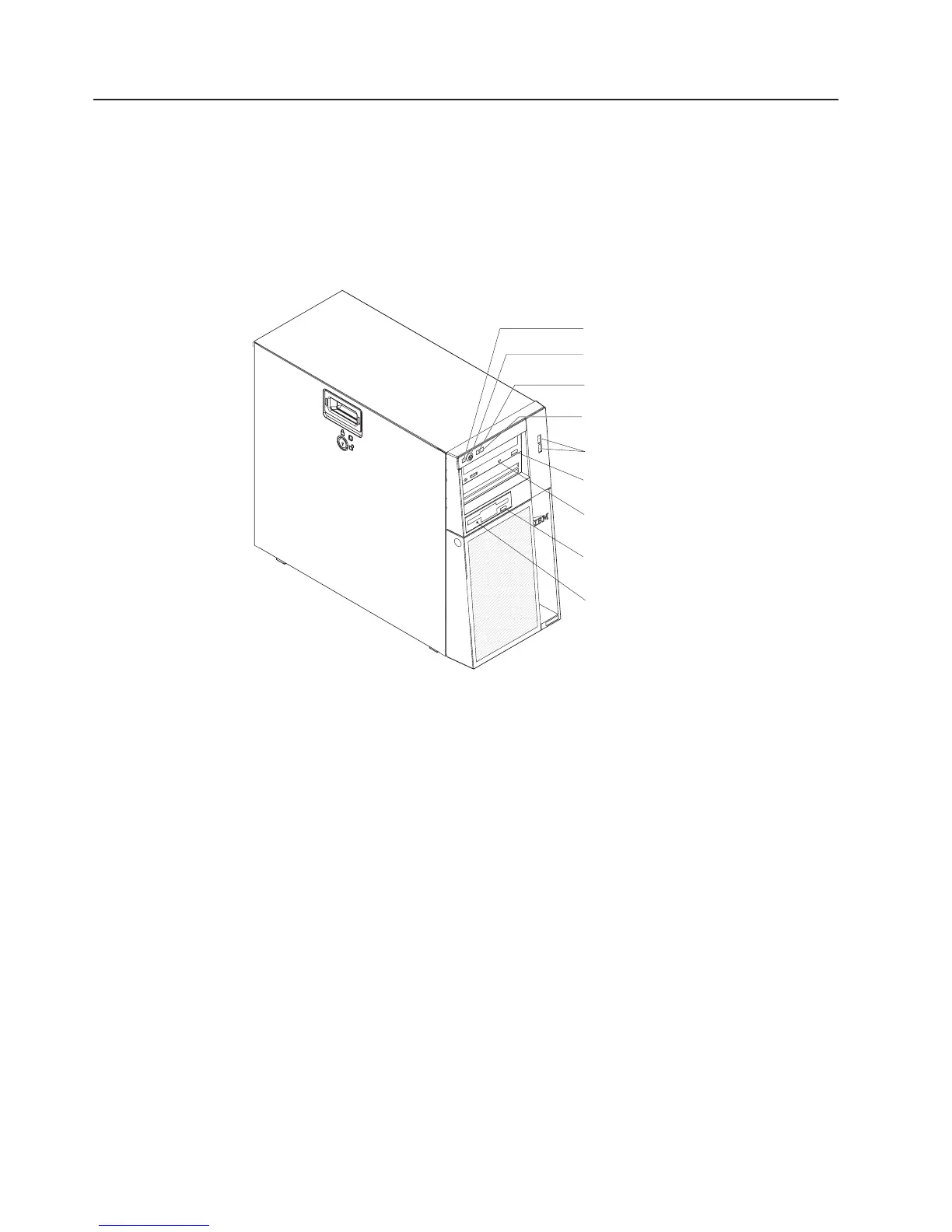

The following illustration shows the controls, LEDs, and connectors on the front of
the server.
CD-eject or
DVD-eject button
CD or DVD drive
activity LED
Hard disk drive
activity LED
Power-on
LED
Power-control
button
System-error
LED
USB connectors
Optional
diskette-eject
button
Optional
diskette drive
activity LED
Power-on LED
When this LED is lit and not flashing, it indicates that the server is turned
on. When this LED is flashing, it indicates that the server is turned off and
still connected to an ac power source. When this LED is off, it indicates that
ac power is not present, or the power supply or the LED itself has failed. A
power LED is also on the rear of the server.
Note: If this LED is off, it does not mean that there is no electrical power in
the server. The LED might be burned out. To remove all electrical power
from the server, you must disconnect the power cords from the electrical
outlets.
Power-control button
Press this button to turn the server on and off manually.
Hard disk drive activity LED
When this LED is flashing, it indicates that the associated hard disk drive is
in use.
USB connectors
Connect USB devices to these connectors.
CD-eject or DVD-eject button
Press this button to release a CD from the CD drive or a DVD from the
DVD drive.
4 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
