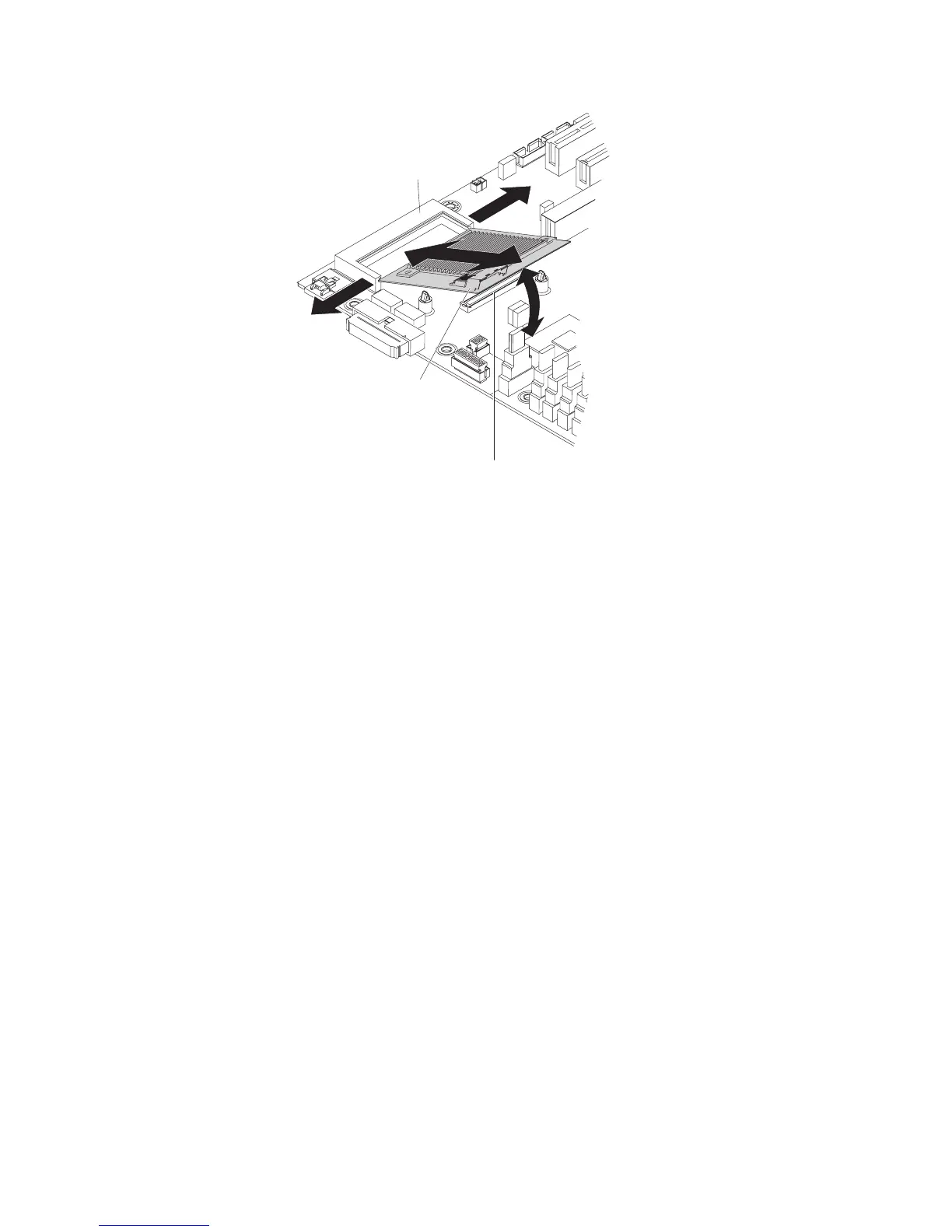

Mini-PCI slot
Mini-PCI-X enablement
card
Mini-PCI-X enablement
card connector
3. Install and lock the side cover (see “Installing the side cover” on page 53).
4. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing the IBM ServeRAID-MR10i SAS/SATA controller
To remove the IBM ServeRAID-MR10i SAS/SATA controller from the server,
complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 52).
4. If you are replacing the ServeRAID-MR10i SAS/SATA controller, disconnect the
signal cables from the controller and the power cable from the power supply;
then, remove the controller from the server.
5. If you are instructed to return the adapter, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Chapter 4. Removing and replacing server components 99

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
